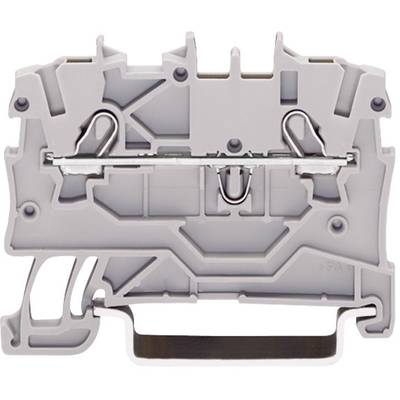

WAGO 2000-1204 Continuity 3.50 mm Pull spring Configuration: N Blue 1 pc(s)
EAN:
Part number:
Item no:
Connection
Pull spring
Cross section (flexible) (min.)
0.14 mm²
Cross section (flexible) (max.)
1.50 mm²
Cross section (inflexible) (min.)
0.14 mm²
Cross section (inflexible) (max.)
1.50 mm²
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.03
5
7% = € 0.27
€ 3.76
10
9% = € 0.37
€ 3.66
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.03 / piece)
€
Highlights & Details
WAGO 2000-1204 Continuity 3.50 mm Pull spring Configuration: N Blue 1 pc(s)
- 2000-1204
- TOPJOB®S
- CAGE CLAMP®
Technical specifications
- Connection
Pull spring
- Configuration
N
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
1.50 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
1.50 mm²
- AWG (min.)
24
- AWG max.
16
- Clamp width
3.50 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Blue
- Nominal current
13.5 A
- Nominal current - rounded value
13.5 A
- Nominal voltage
800 V
- Min. stripping length
10 mm
- Stripping length (max.)
12 mm
- Manufacturer part #
2000-1204
- Content
1 pc(s)
- Type
2000-1204
- Dim
- Width
3.50 mm
- RoHS-compliant
- Type
2-conductors
- Nominal current (details)
13.5 A (18 A with flexible ladders)
- Connection
-
DIN rail (top hat rail) 35 mm
Blue
3.5
48.5 mm
32.9 mm
800 V
105-105 °C
V0
TRUE
Spring clamp connection
Spring clamp connection
1
2
FALSE
0.5-1.5 mm²
0.5-0.75 mm²
0.14-1.5 mm²
0.14-1 mm²
Thermoplastic
13.5 A
TRUE
- Product type
Continuity
Documents & Downloads
Datasheet
Datasheet 730322 WAGO 2000-1204 Continuity 3.50 mm Pull spring Configuration: N Blue 1 pc(s)
Datasheet 730322 WAGO 2000-1204 Continuity 3.50 mm Pull spring Configuration: N Blue 1 pc(s)
Description
The 2000 series made possible by the CAGE CLAMP S connector plug from simple single-wire and flexible ladders.
