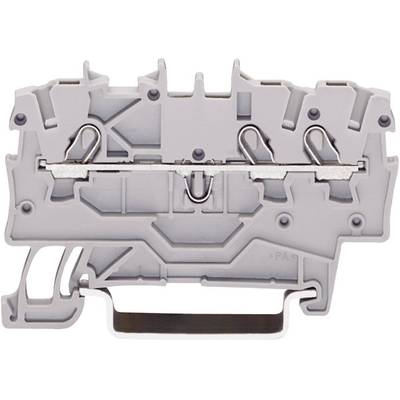

WAGO 2000-1301 Continuity 3.50 mm Pull spring Configuration: L Grey 1 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Pull spring
Cross section (flexible) (max.)
1.50 mm²
Cross section (inflexible) (max.)
1.50 mm²
Nominal current - rounded value
13.5 A
Datasheet (PDF)
255 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.08
10
7% = € 0.08
€ 1.00
25
11% = € 0.12
€ 0.96
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.08 / piece)
€
Highlights & Details
WAGO 2000-1301 Continuity 3.50 mm Pull spring Configuration: L Grey 1 pc(s)
- 2000-1301
- TOPJOB®S
- CAGE CLAMP®
Technical specifications
- Product type
Continuity
- Connection
Pull spring
- Configuration
L
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
1.50 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
1.50 mm²
- AWG (min.)
24
- AWG max.
16
- Clamp width
3.50 mm
- No. of rows
1
- Pins per row
3
- Number of pins
3
- Factory colour
Grey
- Nominal current
13.5 A
- Nominal current - rounded value
13.5 A
- Nominal voltage
800 V
- Min. stripping length
10 mm
- Stripping length (max.)
12 mm
- Manufacturer part #
2000-1301
- Content
1 pc(s)
- Type
2000-1301
- Width
3.50 mm
- Type
3-conductor
- Nominal current (details)
13.5 A (18 A with flexible ladders)
- Connection
-
Documents & Downloads
Datasheet
Datasheet 730474 WAGO 2000-1301 Continuity 3.50 mm Pull spring Configuration: L Grey 1 pc(s)
Datasheet 730474 WAGO 2000-1301 Continuity 3.50 mm Pull spring Configuration: L Grey 1 pc(s)
Description
The 2000 series made possible by the CAGE CLAMP S connector plug from simple single-wire and flexible ladders.
