Buy WAGO 2000-1403 Continuity 3.50 mm Pull spring Red 100 pc(s) Package

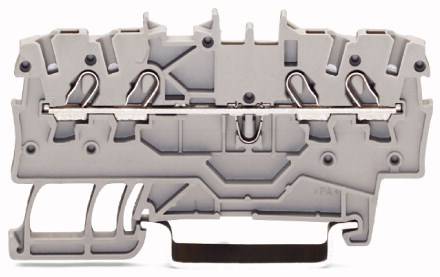

Industrial assembly group with a grey plastic casing, metal components and connectors, used for electrical assembly in control systems.

Packaging type

Package

Product type

Continuity

Connection

Pull spring

Cross section (flexible) (max.)

1.50 mm²

Cross section (inflexible) (max.)

1 mm²

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

4-conductor through terminal

2000 1403
Industrial packaging with 100 pieces
This text is machine translated.

Technical specifications

Packaging type: Package

Product type: Continuity

Features: Complies with ATEX Ex-e II standards

Connection: Pull spring

Cross section (flexible) (min.): 0.14 mm²

Cross section (flexible) (max.): 1.50 mm²

Cross section (inflexible) (min.): 0.14 mm²

Cross section (inflexible) (max.): 1 mm²

AWG (min.): 24

AWG max.: 16

Clamp width: 3.50 mm

No. of rows: 1

Pins per row: 4

Number of pins: 4

Factory colour: Red

Nominal current: 13.5 A

Nominal current - rounded value: 13.5 A

Nominal voltage: 800 V

Stripping length (max.): 9 mm

Manufacturer part #: 2000-1403

Content: 100 pc(s)

Industrial packaging: Yes

Type: 2000-1403

Dim: (L x W x H) 3.50 x 3.50 x 32.90 mm

Width: 3.50 mm

Height: 32.90 mm

Length: 3.50 mm

Contamination level: 3

Weight: 5.14 g

Connector colour: Red

UKCA: not relevant
