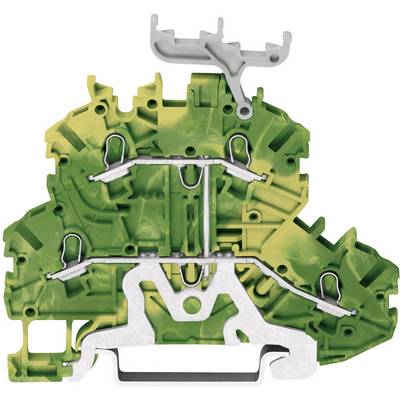

WAGO 2000-2237 Dual port PG terminal 3.50 mm Pull spring Configuration: Terre Green, Yellow 1 pc(s)
EAN:
Part number:
Item no:
Product type
Dual port PG terminal
Connection
Pull spring
Cross section (flexible) (max.)
1.50 mm²
Cross section (inflexible) (max.)
1 mm²
Nominal current - rounded value
13.5 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 26.04
3
4% = € 1.13
€ 24.91
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 26.04 / piece)
€ 26.04
plus VAT.
Highlights & Details
WAGO 2000-2237 Dual port PG terminal 3.50 mm Pull spring Configuration: Terre Green, Yellow 1 pc(s)
- TOPJOB®S
- CAGE CLAMP®
Technical specifications
- Product type
Dual port PG terminal
- Features
+ label
- Connection
Pull spring
- Configuration
Terre
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
1.50 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
1 mm²
- AWG (min.)
24
- AWG max.
16
- Clamp width
3.50 mm
- No. of rows
2
- Pins per row
2
- Number of pins
4
- Factory colour
Green
Yellow
- Nominal current
13.5 A
- Nominal current - rounded value
13.5 A
- Min. stripping length
9 mm
- Stripping length (max.)
11 mm
- Manufacturer part #
2000-2237
- Content
1 pc(s)
- Type
2000-2237
- Width
3.50 mm
- Type
PE
- Nominal voltage (details)
500 V
- Nominal current (details)
13.5 A
Documents & Downloads
Datasheet
Datasheet 736775 WAGO 2000-2237 Dual port PG terminal 3.50 mm Pull spring Configuration: Terre Green, Yellow 1 pc(s)
Description
4-conductor double level terminal block with label slot, internally bridged, conductor entry printed violet.
