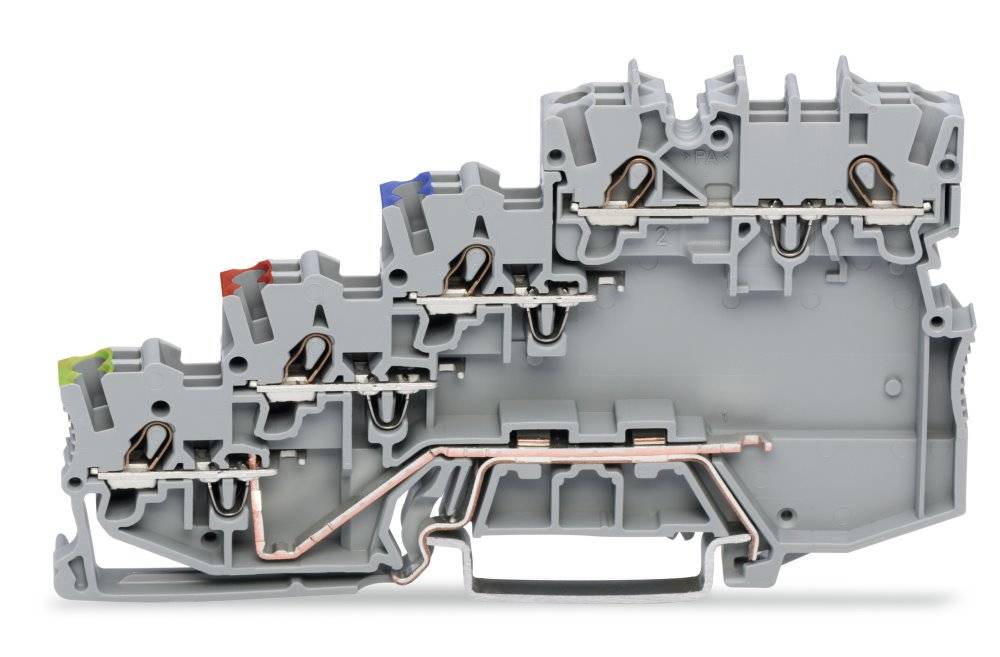

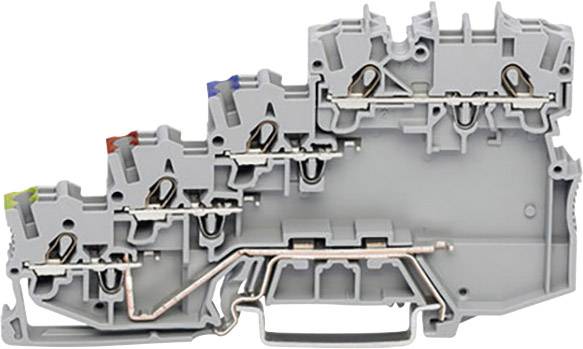

WAGO 2000-5417 Proximity switch terminal 7 mm Pull spring Grey 50 pc(s)
EAN:
Part number:
Item no:
Product type
Proximity switch terminal
Connection
Pull spring
Cross section (flexible) (max.)
1.50 mm²
Cross section (inflexible) (max.)
1.50 mm²
Nominal current - rounded value
13.5 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 11.58 / piece)
€ 578.99
plus VAT.
Highlights & Details
4-wire initiator terminal. 2000-5417
- 2000-5417
Technical specifications
- Product type
Proximity switch terminal
- Features
+ PG connector
- Connection
Pull spring
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
1.50 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
1.50 mm²
- AWG (min.)
24
- AWG max.
16
- Clamp width
7 mm
- No. of rows
4
- Pins per row
2
- Number of pins
10
- Factory colour
Grey
- Nominal current
13.5 A
- Nominal current - rounded value
13.5 A
- Nominal voltage
250 V AC
- Min. stripping length
9 mm
- Stripping length (max.)
11 mm
- Manufacturer part #
2000-5417
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
2000-5417
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1489599 WAGO 2000-5417 Proximity switch terminal 7 mm Pull spring Grey 50 pc(s)
User & Safety Instructions
User & Safety Instructions 1489599 WAGO 2000-5417 Proximity switch terminal 7 mm Pull spring Grey 50 pc(s)
