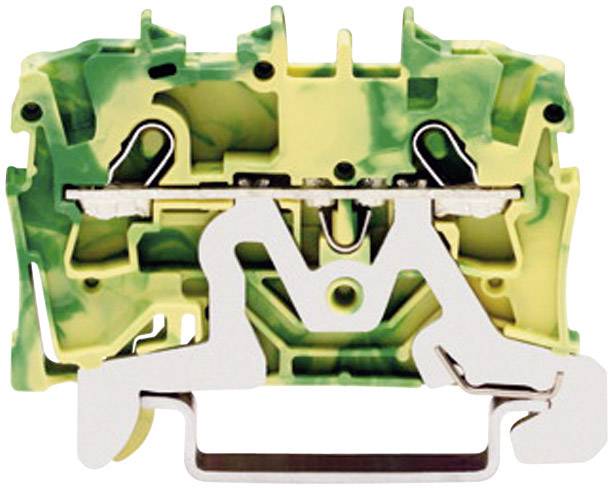

WAGO 2001-1207 PG terminal 4.20 mm Pull spring Configuration: Terre Green, Yellow 1 pc(s)
EAN:
Part number:
Item no:
Product type
PG terminal
Connection
Pull spring
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
1.50 mm²
Nominal current - rounded value
18 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.35
10
7% = € 0.25
€ 3.10
25
10% = € 0.35
€ 3.00
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.35 / piece)
€ 3.35
plus VAT.
14-day return policy included
Highlights & Details
WAGO 2001-1207 PG terminal 4.20 mm Pull spring Configuration: Terre Green, Yellow 1 pc(s)
- Durchgangsklemme
- TOPJOB®S
- CAGE CLAMP®
Technical specifications
- Product type
PG terminal
- Connection
Pull spring
- Configuration
Terre
- Cross section (flexible) (min.)
0.25 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (min.)
0.25 mm²
- Cross section (inflexible) (max.)
1.50 mm²
- AWG (min.)
22
- AWG max.
14
- Clamp width
4.20 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Green
Yellow
- Nominal current
18 A
- Nominal current - rounded value
18 A
- Min. stripping length
9 mm
- Stripping length (max.)
11 mm
- Manufacturer part #
2001-1207
- Content
1 pc(s)
- Type
Durchgangsklemme
- Width
4.20 mm
- Weight
714.00
- Type
2-conductors
- Nominal current (details)
18 A
- Connection
-
DIN rail (top hat rail) 35 mm
Green/yellow
4.2
50.8 mm
32.9 mm
105-105 °C
V0
TRUE
Spring clamp connection
Spring clamp connection
1
2
0.5-2.5 mm²
0.75-1.5 mm²
0.25-2.5 mm²
0.25-1.5 mm²
Thermoplastic
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 730541 WAGO 2001-1207 PG terminal 4.20 mm Pull spring Configuration: Terre Green, Yellow 1 pc(s)
User & Safety Instructions
User & Safety Instructions 730541 WAGO 2001-1207 PG terminal 4.20 mm Pull spring Configuration: Terre Green, Yellow 1 pc(s)
Description
The Series 2001 with CAGE-clamp S-connection belongs to the smallest terminal strip family and enables space saving up to 30%
