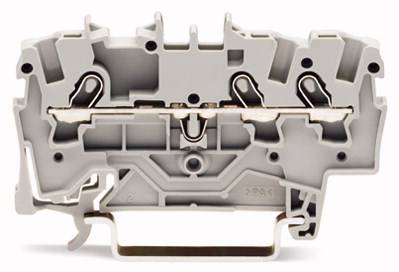

WAGO 2001-1303 Continuity 4.20 mm Pull spring Red 100 pc(s) Package
EAN:
Part number:
Item no:
Packaging type
Package
Product type
Continuity
Connection
Pull spring
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
1.50 mm²
Datasheet (PDF)
Highlights & Details
3-conductor through terminal
- 2001-1303
Technical specifications
- Packaging type
Package
- Product type
Continuity
- Features
Complies with ATEX Ex-e II standards
- Connection
Pull spring
- Cross section (flexible) (min.)
0.25 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (min.)
0.25 mm²
- Cross section (inflexible) (max.)
1.50 mm²
- AWG (min.)
22
- AWG max.
14
- Clamp width
4.20 mm
- No. of rows
1
- Pins per row
3
- Number of pins
3
- Factory colour
Red
- Nominal current
18 A
- Nominal current - rounded value
18 A
- Nominal voltage
800 V
- Stripping length (max.)
9 mm
- Manufacturer part #
2001-1303
- Content
100 pc(s)
- Industrial packaging
Yes
- Type
2001-1303
- Dim
(L x W x H) 4.20 x 4.20 x 32.90 mm
- Width
4.20 mm
- Height
32.90 mm
- Length
4.20 mm
- Contamination level
3
- Weight
4.326 g
- Connector colour
Red
DIN rail (top hat rail) 35 mm
Red
4.2
59.2 mm
32.9 mm
800 V
105-105 °C
V0
TRUE
Spring clamp connection
Spring clamp connection
1
3
FALSE
0.5-2.5 mm²
0.75-1.5 mm²
0.25-2.5 mm²
0.25-1.5 mm²
Thermoplastic
18 A
TRUE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 654103 WAGO 2001-1303 Continuity 4.20 mm Pull spring Red 100 pc(s) Package
User & Safety Instructions
User & Safety Instructions 654103 WAGO 2001-1303 Continuity 4.20 mm Pull spring Red 100 pc(s) Package
