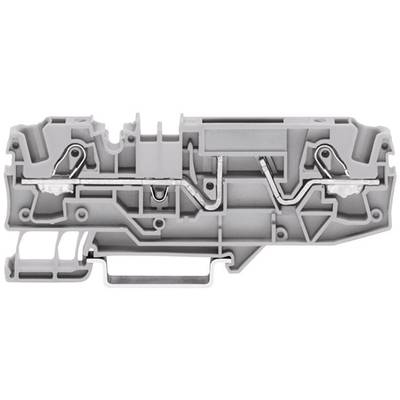

WAGO 2002-1681 Fuse terminal 5.20 mm Pull spring Configuration: L Grey 1 pc(s)
EAN:
Part number:
Item no:
Product type
Fuse terminal
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
2.50 mm²
Nominal current - rounded value
10 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.35
10
7% = € 0.25
€ 3.10
25
10% = € 0.35
€ 3.00
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.35 / piece)
€ 3.35
plus VAT.
Highlights & Details
WAGO 2002-1681 Fuse terminal 5.20 mm Pull spring Configuration: L Grey 1 pc(s)
- TOPJOB®S
- CAGE CLAMP®
Technical specifications
- Product type
Fuse terminal
- Connection
Pull spring
- Configuration
L
- Cross section (flexible) (min.)
0.25 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.25 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
22
- AWG max.
12
- Clamp width
5.20 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Grey
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Nominal voltage
400 V
- Min. stripping length
10 mm
- Stripping length (max.)
12 mm
- Manufacturer part #
2002-1681
- Content
1 pc(s)
- Type
2002-1681
- Width
5.20 mm
- Nominal current (details)
10 A
- Cross section
25 -2.5 mm mm²
- Connection
-
Documents & Downloads
Datasheet
Datasheet 732332 WAGO 2002-1681 Fuse terminal 5.20 mm Pull spring Configuration: L Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 732332 WAGO 2002-1681 Fuse terminal 5.20 mm Pull spring Configuration: L Grey 1 pc(s)
Description
For flat fuse inserts in accordance with DIN 72581-3f, ISO 8820-3.
