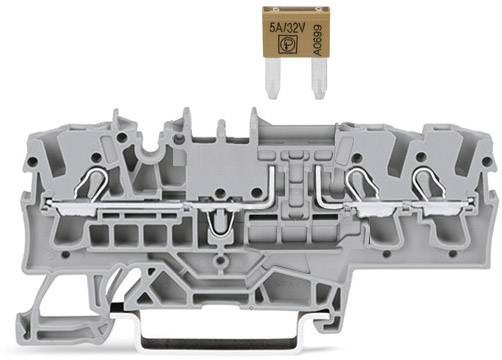

WAGO 2002-1781 Fuse terminal 5.20 mm Push-in connector Grey 50 pc(s)
EAN:
Part number:
Item no:
Product type
Fuse terminal
Connection
Push-in connector
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
10 A
Datasheet (PDF)
Technical specifications
- Product type
Fuse terminal
- Connection
Push-in connector
- Cross section (flexible) (min.)
0.25 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.25 mm²
- Cross section (inflexible) (max.)
4 mm²
- Clamp width
5.20 mm
- No. of rows
1
- Number of pins
3
- Factory colour
Grey
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Nominal voltage
400 V
- Min. stripping length
10 mm
- Stripping length (max.)
12 mm
- Manufacturer part #
2002-1781
- Content
50 pc(s)
- Type
2002-1781
- Height
32.90 mm
- Length
76.80 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1931678 WAGO 2002-1781 Fuse terminal 5.20 mm Push-in connector Grey 50 pc(s)
User & Safety Instructions
User & Safety Instructions 1931678 WAGO 2002-1781 Fuse terminal 5.20 mm Push-in connector Grey 50 pc(s)
