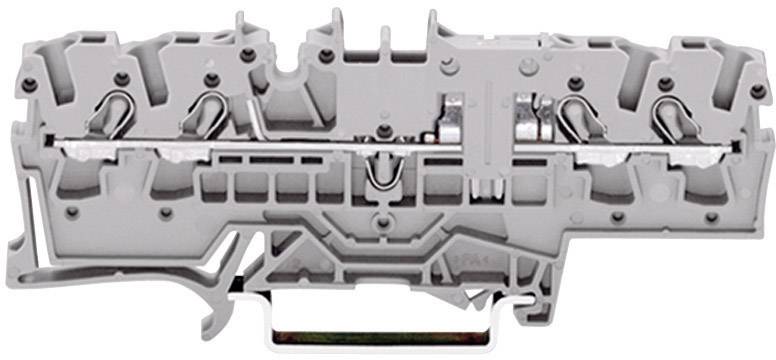

WAGO 2002-1801 Continuity 5.20 mm Pull spring Configuration: L Grey 1 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
2.50 mm²
Nominal current - rounded value
16 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 18.48
3
5% = € 0.92
€ 17.56
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 18.48 / piece)
€ 18.48
plus VAT.
14-day return policy included
Highlights & Details
WAGO 2002-1801 Continuity 5.20 mm Pull spring Configuration: L Grey 1 pc(s)
- TOPJOB®S
- CAGE CLAMP®
Technical specifications
- Product type
Continuity
- Features
+ test option
+ swivelling cutter
- Connection
Pull spring
- Configuration
L
- Cross section (flexible) (min.)
0.25 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.25 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
22
- AWG max.
12
- Clamp width
5.20 mm
- No. of rows
1
- Pins per row
4
- Number of pins
4
- Factory colour
Grey
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Nominal voltage
400 V
- Min. stripping length
10 mm
- Stripping length (max.)
12 mm
- Manufacturer part #
2002-1801
- Content
1 pc(s)
- Type
2002-1801
- Width
5.20 mm
- Material
Polyamide
- Nominal current (details)
16 A
- Connection
-
Documents & Downloads
Datasheet
Datasheet 732260 WAGO 2002-1801 Continuity 5.20 mm Pull spring Configuration: L Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 732260 WAGO 2002-1801 Continuity 5.20 mm Pull spring Configuration: L Grey 1 pc(s)
Description
With testing option, same contours with 4-conductor disconnecting terminal. Swivelling disconnecting blade.
