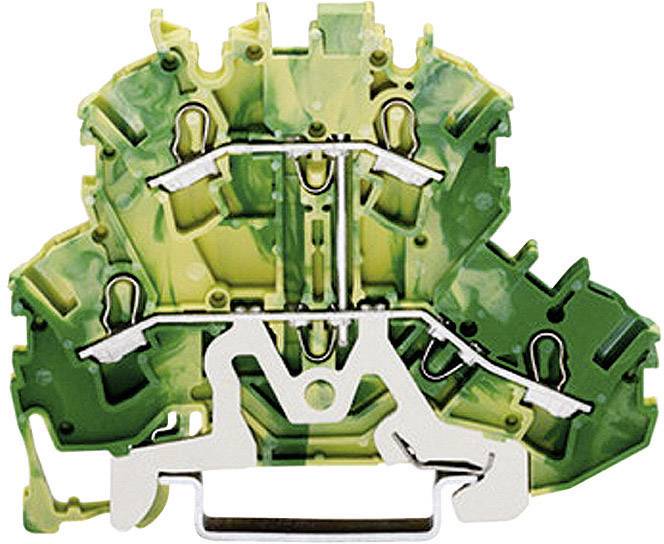

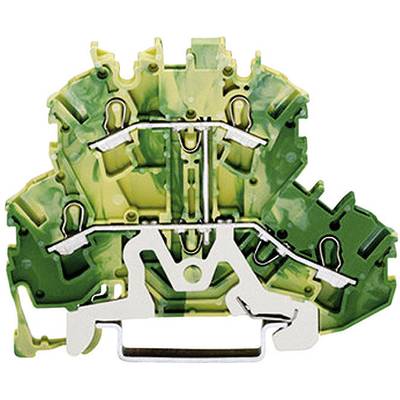

WAGO 2002-2207 Dual port PG terminal 5.20 mm Pull spring Configuration: Terre Green, Yellow 1 pc(s)
EAN:
Part number:
Item no:
Product type
Dual port PG terminal
Connection
Pull spring
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
24 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 6.29
5
6% = € 0.38
€ 5.91
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 6.29 / piece)
€ 6.29
plus VAT.
Highlights & Details
WAGO 2002-2207 Dual port PG terminal 5.20 mm Pull spring Configuration: Terre Green, Yellow 1 pc(s)
- 2002-2207
Technical specifications
- Product type
Dual port PG terminal
- Connection
Pull spring
- Configuration
Terre
- Cross section (flexible) (min.)
0.25 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (min.)
0.25 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
22
- AWG max.
14
- Clamp width
5.20 mm
- No. of rows
2
- Pins per row
2
- Number of pins
4
- Factory colour
Green
Yellow
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Min. stripping length
10 mm
- Stripping length (max.)
12 mm
- Manufacturer part #
2002-2207
- Content
1 pc(s)
- Type
2002-2207
- Width
5.20 mm
- Type
PE (4-Conductor)
- Nominal current (details)
-
- Connection
-
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 735437 WAGO 2002-2207 Dual port PG terminal 5.20 mm Pull spring Configuration: Terre Green, Yellow 1 pc(s)
Datasheet 735437 WAGO 2002-2207 Dual port PG terminal 5.20 mm Pull spring Configuration: Terre Green, Yellow 1 pc(s)
User & Safety Instructions
User & Safety Instructions 735437 WAGO 2002-2207 Dual port PG terminal 5.20 mm Pull spring Configuration: Terre Green, Yellow 1 pc(s)
