WAGO 2004-1406 Continuity 6.20 mm Pull spring Yellow 50 pc(s) Package
EAN:
Part number:
Item no:
Packaging type
Package
Product type
Continuity
Connection
Pull spring
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
Highlights & Details

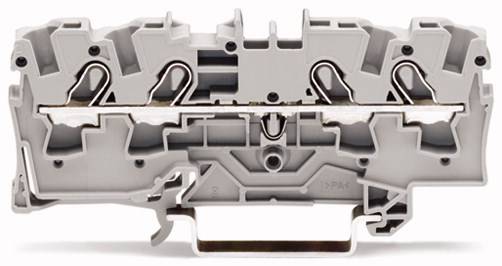

4-conductor through terminal
- 2004 1406
- Industrial packaging, pack of 50
- This text is machine translated.
Technical specifications
- Packaging type
Package
- Product type
Continuity
- Features
Complies with ATEX Ex-e II standards
- Connection
Pull spring
- Cross section (flexible) (min.)
0.50 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.50 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
20
- AWG max.
10
- Clamp width
6.20 mm
- No. of rows
1
- Pins per row
4
- Number of pins
4
- Factory colour
Yellow
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
800 V
- Stripping length (max.)
11 mm
- Manufacturer part #
2004-1406
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
2004-1406
- Dim
(L x W x H) 6.20 x 6.20 x 32.90 mm
- Width
6.20 mm
- Height
32.90 mm
- Length
6.20 mm
- Contamination level
3
- Weight
9.621 g
- Connector colour
Yellow
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 657097 WAGO 2004-1406 Continuity 6.20 mm Pull spring Yellow 50 pc(s) Package
User & Safety Instructions
User & Safety Instructions 657097 WAGO 2004-1406 Continuity 6.20 mm Pull spring Yellow 50 pc(s) Package
