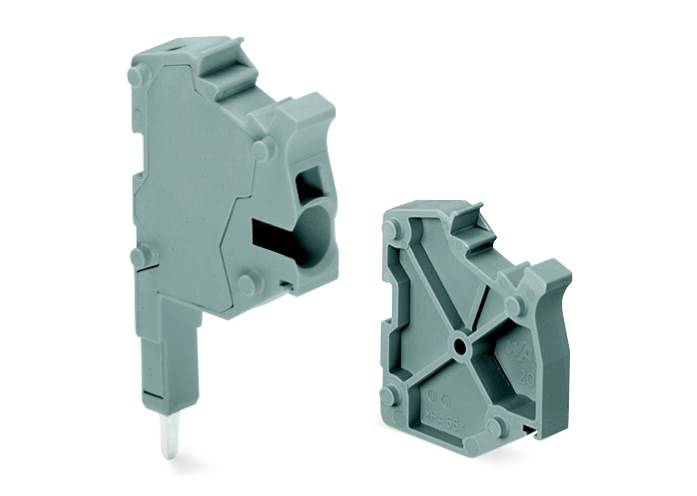

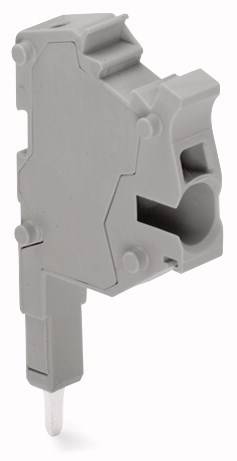

WAGO 2004-511 Punch-down block 6.20 mm Pull spring Grey 100 pc(s)
EAN:
Part number:
Item no:
Product type
Punch-down block
Connection
Pull spring
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
32 A
Datasheet (PDF)
Highlights & Details
Modular TOPJOB ® S connector
- 2004-511
- Industrial packaging with 100 pieces
- This text is machine translated.
Technical specifications
- Product type
Punch-down block
- Connection
Pull spring
- Cross section (flexible) (min.)
0.50 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.50 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
20
- AWG max.
10
- Clamp width
6.20 mm
- No. of rows
1
- Pins per row
1
- Number of pins
1
- Factory colour
Grey
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
500 V
- Stripping length (max.)
11 mm
- Manufacturer part #
2004-511
- Content
100 pc(s)
- Industrial packaging
Yes
- Type
2004-511
- Dim
(L x W) 6.20 mm x 6.20 mm
- Width
6.20 mm
- Length
6.20 mm
- Contamination level
3
- Weight
4.495 g
- UKCA
not relevant
