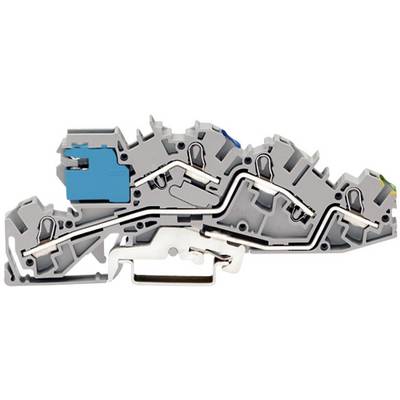

WAGO 2005-7641 Industrial terminal block 6.20 mm Pull spring Configuration: NT, L, Terre Grey 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Industrial terminal block
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 6.71
5
6% = € 0.41
€ 6.30
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 6.71 / piece)
€ 6.71
plus VAT.
14-day return policy included
Highlights & Details
WAGO 2005-7641 Industrial terminal block 6.20 mm Pull spring Configuration: NT, L, Terre Grey 1 pc(s) Piece
- TOPJOB®S
- CAGE CLAMP®
Technical specifications
- Packaging type
Piece
- Product type
Industrial terminal block
- Features
+ N disconnect slide
- Connection
Pull spring
- Configuration
NT
L
Terre
- Cross section (flexible) (min.)
0.50 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.50 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
20
- AWG max.
12
- Clamp width
6.20 mm
- No. of rows
3
- Pins per row
1
- Number of pins
3
- Factory colour
Grey
- Nominal current
36 A
- Nominal current - rounded value
36 A
- Nominal voltage
250 V
- Min. stripping length
11 mm
- Stripping length (max.)
13 mm
- Manufacturer part #
2005-7641
- Content
1 pc(s)
- Type
2005-7641
- Width
6.20 mm
- Connector colour
Grey
- Type
NT/L/P
- Nominal current (details)
36 A
- Connection
-
Documents & Downloads
Datasheet
Datasheet 730233 WAGO 2005-7641 Industrial terminal block 6.20 mm Pull spring Configuration: NT, L, Terre Grey 1 pc(s) Piece
Datasheet 730233 WAGO 2005-7641 Industrial terminal block 6.20 mm Pull spring Configuration: NT, L, Terre Grey 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 730233 WAGO 2005-7641 Industrial terminal block 6.20 mm Pull spring Configuration: NT, L, Terre Grey 1 pc(s) Piece
Description
Connection of Massivleitern and flexible conductors with wire-end sleeve via direct connection technique. Through identical bus bar position, the compatibility is guaranteed with the previous installation clamps.
