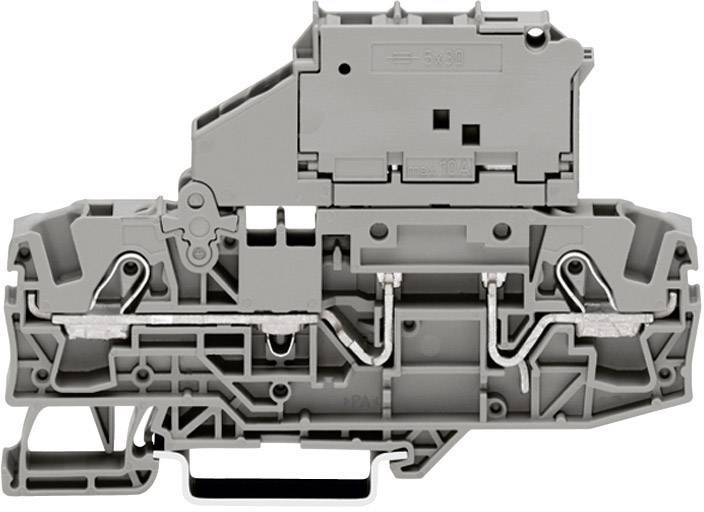

WAGO 2006-1621 Fuse terminal 7.50 mm Pull spring Configuration: L Grey 1 pc(s)
EAN:
Part number:
Item no:
Product type
Fuse terminal
Connection
Pull spring
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
10 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.61
5
7% = € 0.30
€ 4.31
10
9% = € 0.42
€ 4.19
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.61 / piece)
€ 6.71
-31 %
€ 4.61
plus VAT.
Only 10 Piece(s) available
WAGO 2006-1621 Fuse terminal 7.50 mm Pull spring Configuration: L Grey 1 pc(s)
Highlights & Details
Technical specifications
- Product type
Fuse terminal
- Features
+ swivelling fuse holder
- Connection
Pull spring
- Configuration
L
- Cross section (flexible) (min.)
0.50 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.50 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
20
- AWG max.
8
- Clamp width
7.50 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Grey
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Nominal voltage
800 V
- Min. stripping length
13 mm
- Stripping length (max.)
15 mm
- Manufacturer part #
2006-1621
- Content
1 pc(s)
- Type
2006-1621
- Width
7.50 mm
- Compatible with (details)
G fuse links 5 x 30 mm
- Nominal current (details)
10 A
- Connection
-
Documents & Downloads
Datasheet
Datasheet 730642 WAGO 2006-1621 Fuse terminal 7.50 mm Pull spring Configuration: L Grey 1 pc(s)
Datasheet 730642 WAGO 2006-1621 Fuse terminal 7.50 mm Pull spring Configuration: L Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 730642 WAGO 2006-1621 Fuse terminal 7.50 mm Pull spring Configuration: L Grey 1 pc(s)
Description
2-cord fuse terminal with swiveling fuse holder for G fuse insert
