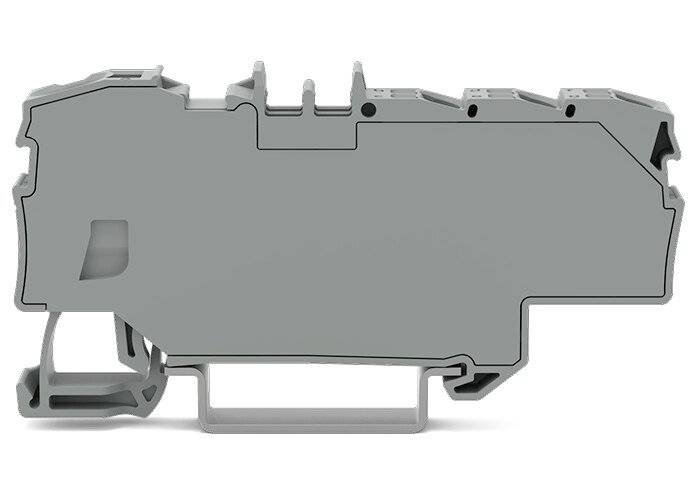

WAGO 2006-8031 Distributor serial terminal Spring-loaded heavy duty connector Grey 12 pc(s)
EAN:
Part number:
Item no:
Product type
Distributor serial terminal
Connection
Spring-loaded heavy duty connector
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
10 mm²
Nominal current - rounded value
41 A
Technical specifications
- Product type
Distributor serial terminal
- Connection
Spring-loaded heavy duty connector
- Cross section (flexible) (min.)
0.50 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.50 mm²
- Cross section (inflexible) (max.)
10 mm²
- AWG (min.)
20
- AWG max.
8
- No. of rows
1
- Pins per row
7
- Number of pins
7
- Factory colour
Grey
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Min. stripping length
13 mm
- Stripping length (max.)
15 mm
- Manufacturer part #
2006-8031
- Content
12 pc(s)
- Type
2006-8031
- Dim
(W x H) 9 mm x 73.80 mm
- Width
9 mm
- Height
73.80 mm
