WAGO 2010-1303 Continuity 10 mm Pull spring Red 25 pc(s) Package
EAN:
Part number:
Item no:
Packaging type
Package
Product type
Continuity
Connection
Pull spring
Cross section (flexible) (max.)
16 mm²
Cross section (inflexible) (max.)
10 mm²
Datasheet (PDF)
Highlights & Details

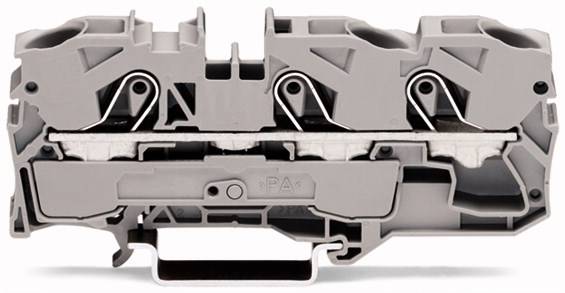

3-conductor through terminal
- 2010-1303
Technical specifications
- Packaging type
Package
- Product type
Continuity
- Features
Complies with ATEX Ex-e II standards
- Connection
Pull spring
- Cross section (flexible) (min.)
0.50 mm²
- Cross section (flexible) (max.)
16 mm²
- Cross section (inflexible) (min.)
0.50 mm²
- Cross section (inflexible) (max.)
10 mm²
- AWG (min.)
20
- AWG max.
6
- Clamp width
10 mm
- No. of rows
1
- Pins per row
3
- Number of pins
3
- Factory colour
Red
- Nominal current
57 A
- Nominal current - rounded value
57 A
- Nominal voltage
800 V
- Stripping length (max.)
17 mm
- Manufacturer part #
2010-1303
- Content
25 pc(s)
- Industrial packaging
Yes
- Type
2010-1303
- Dim
(L x W x H) 10 x 10 x 36.90 mm
- Width
10 mm
- Height
36.90 mm
- Length
10 mm
- Contamination level
3
- Weight
23.515 g
- Connector colour
Red
- UKCA
not relevant
