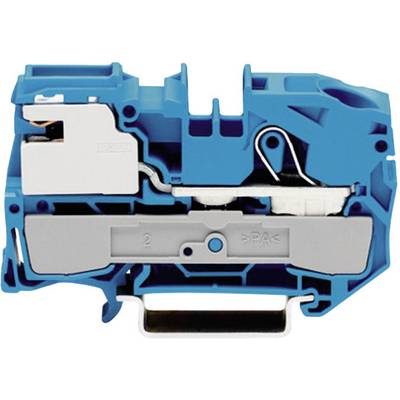

WAGO 2016-7114 N terminal 12 mm Pull spring Configuration: N Blue 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
N terminal
Connection
Pull spring
Cross section (flexible) (max.)
25 mm²
Cross section (inflexible) (max.)
16 mm²
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.45
5
6% = € 0.32
€ 5.13
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.45 / piece)
€ 5.45
plus VAT.
14-day return policy included
Highlights & Details
WAGO 2016-7114 N terminal 12 mm Pull spring Configuration: N Blue 1 pc(s) Piece
- Durchgangsklemme
- TOPJOB®S
- CAGE CLAMP®
Technical specifications
- Packaging type
Piece
- Product type
N terminal
- Features
+ CAGE CLAMP®
- Connection
Pull spring
- Configuration
N
- Cross section (flexible) (min.)
0.50 mm²
- Cross section (flexible) (max.)
25 mm²
- Cross section (inflexible) (min.)
0.50 mm²
- Cross section (inflexible) (max.)
16 mm²
- AWG (min.)
20
- AWG max.
4
- Clamp width
12 mm
- No. of rows
1
- Pins per row
1
- Number of pins
1
- Factory colour
Blue
- Nominal current
76 A
- Nominal current - rounded value
76 A
- Nominal voltage
250 V
- Min. stripping length
18 mm
- Stripping length (max.)
20 mm
- Manufacturer part #
2016-7114
- Content
1 pc(s)
- Type
Durchgangsklemme
- Dim
(W x H) 12 mm x 38.1 mm
- Width
12 mm
- Height
38.1 mm
- Weight
690.00
- Connector colour
Blue
- Nominal current (details)
76 A
- Connection
-
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 730365 WAGO 2016-7114 N terminal 12 mm Pull spring Configuration: N Blue 1 pc(s) Piece
Datasheet 730365 WAGO 2016-7114 N terminal 12 mm Pull spring Configuration: N Blue 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 730365 WAGO 2016-7114 N terminal 12 mm Pull spring Configuration: N Blue 1 pc(s) Piece
Description
1 conductor protection wire terminal, simple plug from a wire- and flexible, with crimped ferrules provided, conductor with CAGE CLAMP S port.
