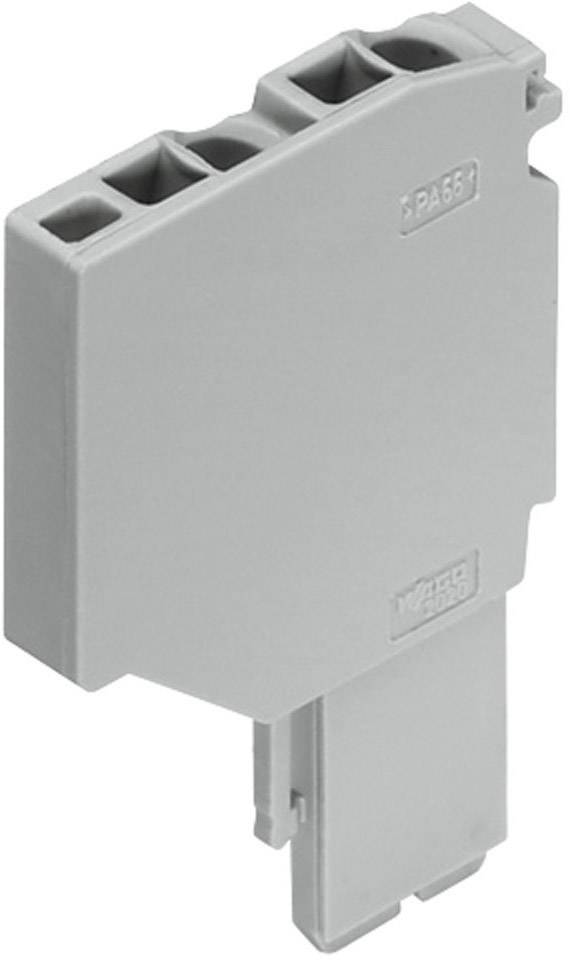

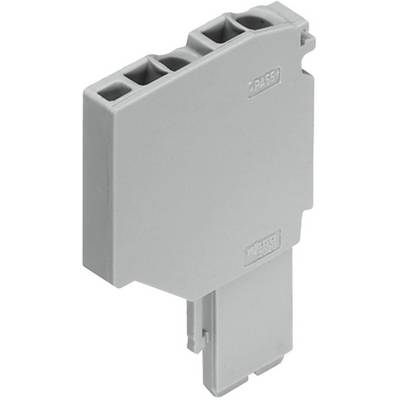

WAGO 2020-261 Grey
EAN:
Part number:
Item no:
Packaging type
Piece
Factory colour
Grey
Stripping length (max.)
11 mm
Connection
Edge connector
Connector colour
Grey
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.92
10
7% = € 0.14
€ 1.78
25
10% = € 0.20
€ 1.72
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.92 / piece)
€ 2.68
-28 %
€ 1.92
plus VAT.
14-day return policy included
Highlights & Details
2-conductor base module
- CAGE CLAMP®
- TOPJOB®S
Technical specifications
- 2L-FL-ANFANGSMODUL O.BR.GRAU
- Packaging type
Piece
- Factory colour
Grey
- Stripping length (max.)
11 mm
- Connection
Edge connector
- Connector colour
Grey
- Manufacturer part #
2020-261
- Content
1 pc(s)
- Nominal voltage
500 V
- Nominal current
13.5 A
- Nominal current - rounded value
13.5 A
- Series
2020
- Series
2020
- Type
2020-261
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (inflexible) (min.)
0.14 mm²
Documents & Downloads
Datasheet
Datasheet 739291 WAGO 2020-261 Grey
User & Safety Instructions
User & Safety Instructions 739291 WAGO 2020-261 Grey
