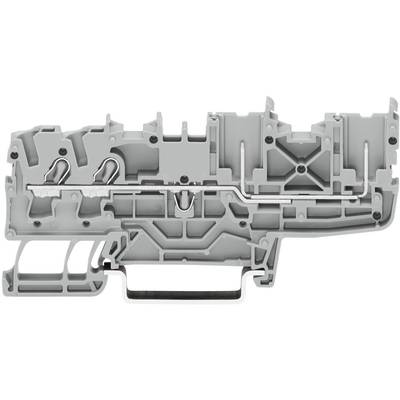

Image similar
Image similar
WAGO 2022-1407 Base terminal 5.20 mm Pull spring Configuration: Terre Green, Yellow 1 pc(s)
EAN:
Part number:
Item no:
Product type
Base terminal
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
2.50 mm²
Nominal current - rounded value
32 A
Datasheet (PDF)
47 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.76
10
8% = € 0.21
€ 2.55
25
10% = € 0.28
€ 2.48
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.76 / piece)
€
Highlights & Details
2-conductor/2-pin PE base terminal, series 2022
Technical specifications
- Product type
Base terminal
- Connection
Pull spring
- Configuration
Terre
- Cross section (flexible) (min.)
0.25 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.25 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
22
- AWG max.
12
- Clamp width
5.20 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Green
Yellow
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Min. stripping length
10 mm
- Stripping length (max.)
12 mm
- Manufacturer part #
2022-1407
- Content
1 pc(s)
- Type
2022-1407
- Dim
- Width
5.20 mm
- RoHS-compliant
- Nominal voltage (details)
690 V
- Nominal current (details)
32 A
Documents & Downloads
Datasheet
Datasheet 739449 WAGO 2022-1407 Base terminal 5.20 mm Pull spring Configuration: Terre Green, Yellow 1 pc(s)
User & Safety Instructions
User & Safety Instructions 739449 WAGO 2022-1407 Base terminal 5.20 mm Pull spring Configuration: Terre Green, Yellow 1 pc(s)
Description
Core TS 35 to EN 60715 standard
