WAGO 221-482 221-482 Connector clip flexible: 0.20-4 mm² fixed: 0.20-4 mm² Number of pins: 2 1 pc(s) Transparent, White
EAN:
Part number:
Item no:
Product type
Connector clip
Cross section (flexible) (min.)
0.20 mm²
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (min.)
0.20 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
3
-
€ 0.72
9
8% = € 0.06
€ 0.66
15
11% = € 0.08
€ 0.64
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 3
Total (€ 0.72 / piece)
€ 2.16
plus VAT.
14-day return policy included
Highlights & Details
Connection terminal series 221
- For Ex applications
- This text is machine translated.
Technical specifications
- Product type
Connector clip
- Cross section (flexible) (min.)
0.20 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.20 mm²
- Cross section (inflexible) (max.)
4 mm²
- Number of pins
2
- Factory colour
Transparent
White
- Series
221
- Nominal current
24.50 A
- Nominal current - rounded value
24.5 A
- Content
1 pc(s)

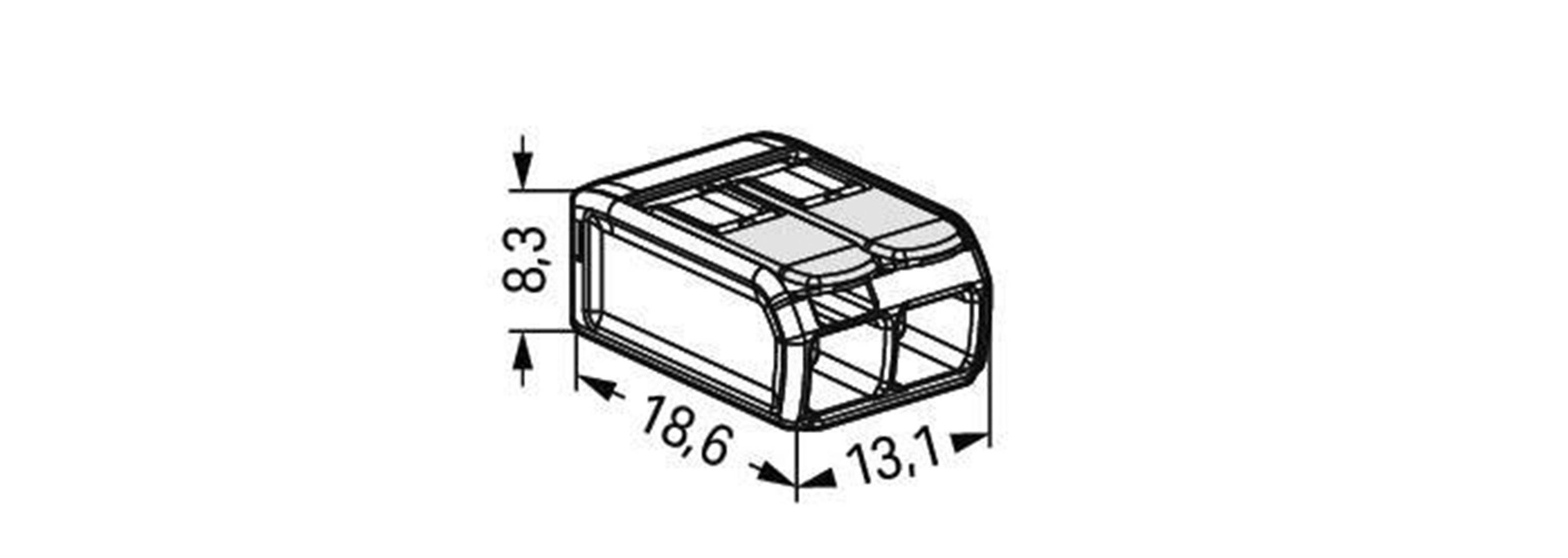

- Dim
(L x W) 18.60 mm x 13.10 mm
- Manufacturer part #
221-482
- Stripping length
11 mm
- Connection
Pull spring
Spring-loaded heavy duty connector
- Nominal voltage
440 V
- Width
13.10 mm
- Length
18.60 mm
- Temperature range
up to +105 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2139439 WAGO 221-482 221-482 Connector clip flexible: 0.20-4 mm² fixed: 0.20-4 mm² Number of pins: 2 1 pc(s) Transparent, White
