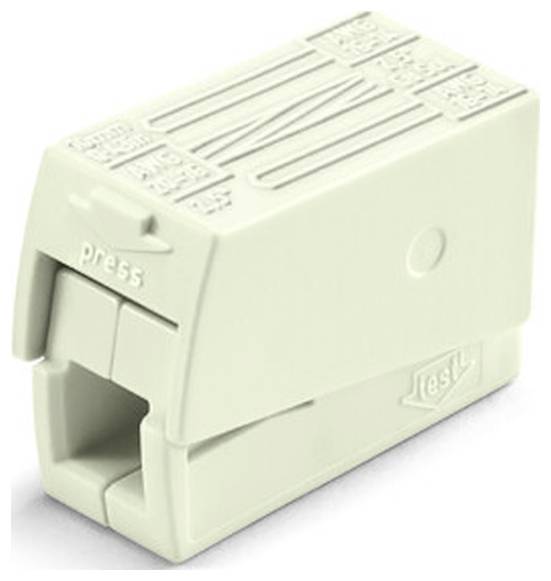

WAGO 224-112 Lamp terminal flexible: - fixed: 1-2.5 mm² 100 pc(s) White

2-conductor lamp terminal; pusher Light side; Light side: For all types of conductor; Inst. side: For single-wire conductors; series 224; max. 2.5 mm²; Ambient temperature max. 60°C; 2.50 mm²; white light terminal series 224 with push-indie light terminal has the article number 224-112 and enables a simple and reliable connection. Connect lamps quickly and securely – with the series 224 lamp terminals you can easily switch any lamp on and off. The 224 series shows its strengths everywhere in the building, where fine-wired conductors must be connected with single-wire conductors. For the conductor connection, stripping lengths from 9 to 11 mm are required for this lamp terminal. The connection terminals with a rated voltage of 400 V are designed for a rated current up to 24 A. Thus, they can also be used for high-performance consumers. This product is equipped with PUSH WIRE® and CAGE CLAMP® technology. Our proven PUSH WIRE® plug-in terminal connection is the fastest way to clamp a conductor. This type of connection uses the cable's flexible rigidity to overcome the spring force. With the CAGE CLAMP® universal connector, you have a reliable and maintenance-free connection technology for connecting all types of conductors with a cage tension spring. There is no need for pre-treatment of the conductors, for example by crimping of wire end sleeves. The dimensions are in width x height x depth (9.5 x 15.5 x 20.5) mm. Depending on the type of conductor, this lamp terminal is suitable for wire cross-sections from 1 mm² to 2.5 mm² on the one hand and for wire cross-sections from 0.5 mm² to 2.5 mm² on the other. Simple and uncomplicated: The plug-in terminal connection with WIRE Push®safe and fast installation actuation via push-in For each wiring task the correct terminal
