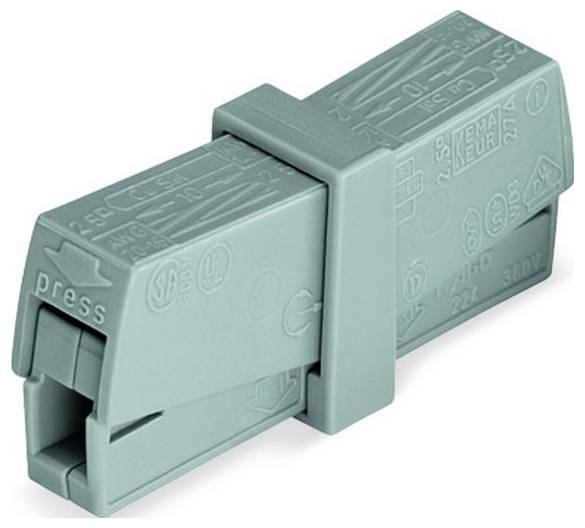

WAGO 224-201 Lamp terminal flexible: - fixed: 0.5-2.5 mm² 50 pc(s) Grey

Service terminal; pusher on both sides; light side: For all types of conductor; install side: For single-wire conductors; series 224; max. 2.5 mm²; ambient temperature max. 60°C; 2.50 mm²; gray light terminal series 224 with push-indie light terminal has the article number 224-201 and enables a fast and reliable connection. Connect lamps quickly and securely – with the series 224 lamp terminals you can easily switch any lamp on and off. The 224 series shows its strengths everywhere in the building, where fine-wired conductors must be connected with single-wire conductors. This lamp clamp requires a stripping length between 9 and 11 mm for the wire connection. This connection terminal with a rated voltage of 400 V is used for electrical currents up to 24 A. The product is therefore also suitable for high-performance consumers. This product is equipped with CAGE CLAMP® technology. The reliable and maintenance-free CAGE CLAMP® universal connector provides the ability to connect all types of conductors with a cage tension spring without the need for pretreatment of the conductors. No need to crimp wire end sleeves. The dimensions are in width x height x depth (8 x 15.5 x 42) mm. These lamp terminals are suitable for conductor cross-sections from 0.5 mm² to 2.5 mm² depending on the type of conductor.

This text is machine translated.
