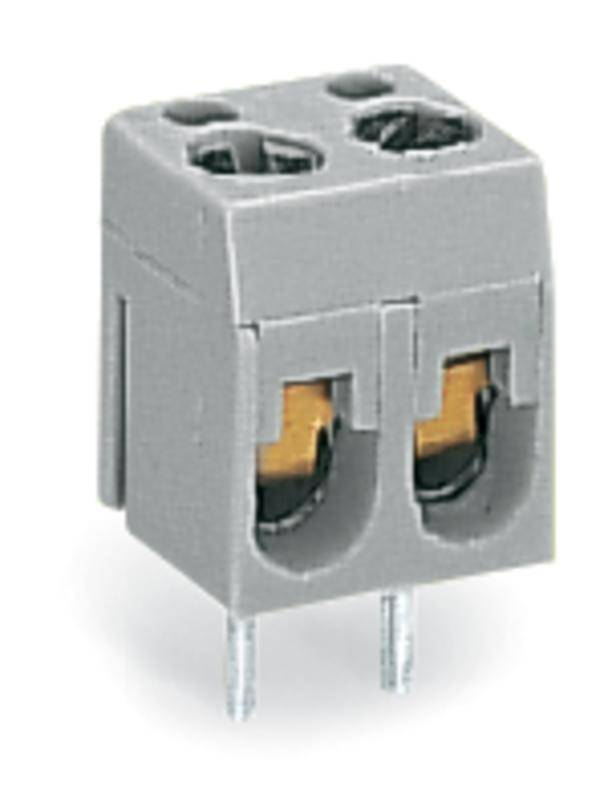

WAGO 237-112 Screw terminal 2.50 mm² Number of pins 1 Grey 600 pc(s)
EAN:
Part number:
Item no:
Product type
Screw terminal
CS
10 mm
10.16 mm
Pins per row
1
Number of pins
1
Connection
Screw terminal
Print
Datasheet (PDF)
Number (Package size 600 pc(s))
Total (€ 0.44 / piece)
€ 264.71
plus VAT.
14-day return policy included
Highlights & Details
Modular terminal block
- Content 600 pc(s)
Technical specifications
- PCB.TERM.BLOCK 2.5 SQMM 1-POLE GREY
- Type
237-112
- Product type
Screw terminal
- CS
10 mm
10.16 mm
- No. of rows
1
- Pins per row
1
- Number of pins
1
- Series
237
- Min. stripping length
5 mm
- Stripping length (max.)
6 mm
- Connection
Screw terminal
Print
- Cross section (flexible) (min.)
0.50 mm²
- Cross section (inflexible) (min.)
0.50 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
20
- Connector orientation
Parallel (to the PCB)
- AWG max.
14
- Contact material
Cathode copper, tin plated
- Factory colour
Grey
- Wire protection
Yes
- Actuation direction
Perpendicular (to the PCB)
- Manufacturer part #
237-112
- Industrial packaging
Yes
- Content
600 pc(s)
- Nominal voltage
800 V
- Width
11.00 mm
- Height
10.00 mm
- Length
9.00 mm
