WAGO 243-304 Screw terminal flexible: - fixed: - 100 pc(s)

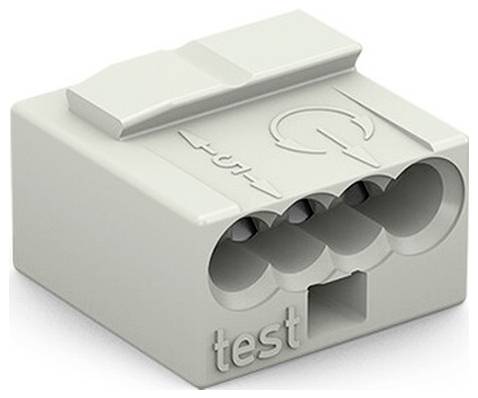

MICRO-connector socket terminal; for single-wire conductor; Ø max. 0.8 mm; 4 conductors; housing color light-gray; lid color light-gray; ambient temperature max. 60°C; Light-gray connection terminal for plug series 243 with push-indie connection terminal for plugging with the article number 243-304 enables a fast and safe connection. The Micro connection socket terminals of the series 243 are suitable for low-current installations in the building. Whether bell or intercom wiring, the micro-socket terminal convinces with such installations through its compact design. With this connector terminal for plugging in, a stripping length in the range from 5 to 6 mm is required for the conductor connection. Rated current and voltage are important criteria when selecting a connection terminal: They provide information about the possible application areas and applications. In this product the rated voltage is 100 V and the rated current is 6 A. This product is equipped with PUSH WIRE® technology. The plug-in terminal connector PUSH WIRE® uses the flexural strength of the conductors to bridge the spring force and thus clamp the conductor more quickly. The dimensions are in width x height x depth (10 x 6.8 x 10) mm.
