1/2
WAGO 249-141 Grey 100 pc(s)
EAN:
Part number:
Item no:
Factory colour
Grey
Stripping length (max.)
9 mm
Connection
Spring-loaded terminal
Weight
3.2 g
Manufacturer part #
249-141
Datasheet (PDF)
Number (Package size 100 pc(s))
Total (€ 7.18 / piece)
€ 718.49
plus VAT.
14-day return policy included
Highlights & Details

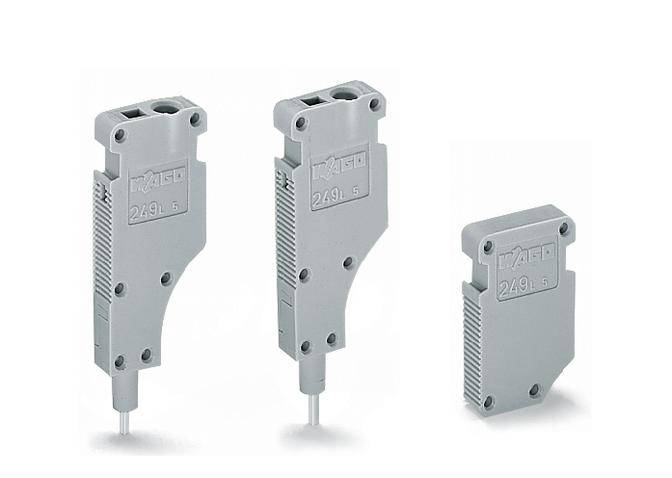

L-type test plug module
- 249-141
- Industrial packaging with 100 pieces
Technical specifications
- sprung loaded test plug
- Factory colour
Grey
- Stripping length (max.)
9 mm
- Connection
Spring-loaded terminal
- Weight
3.2 g
- Manufacturer part #
249-141
- Industrial packaging
Yes
- Content
100 pc(s)
- Nominal voltage
630 V
- Nominal current
6 A
- Nominal current - rounded value
6 A
- Series
249
- Width
5 mm
- Series
249
- Type
249-141
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (inflexible) (min.)
0.08 mm²
Documents & Downloads
Datasheet
Datasheet 737825 WAGO 249-141 Grey 100 pc(s)
User & Safety Instructions
User & Safety Instructions 737825 WAGO 249-141 Grey 100 pc(s)
Description
Modular, with spring contact pin central module, gray.
This text is machine translated.
This text is machine translated.
