WAGO 250-107/000-006 Spring-loaded terminal 1.50 mm² Number of pins 7 Blue 180 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number (Package size 180 pc(s))
Total (€ 1.54 / piece)
€
Highlights & Details
Industry packaging unit 1-conductor terminal strip for PCBs
- 250-107/000-006
- Industrial packaging with 180 pieces
Technical specifications
- Features
+ CAGE CLAMP®
+ actuator
- CS
3.50 mm
- No. of rows
1
- Pins per row
7
- Number of pins
7
- Series
250
- Min. stripping length
5 mm
- Stripping length (max.)
5 mm
- Connection
Spring-loaded terminal
Print
- Nominal current
10 A
- Cross section (flexible) (min.)
0.20 mm²
- Nominal current - rounded value
10 A
- Cross section (inflexible) (min.)
0.20 mm²
- Cross section (flexible) (max.)
1.50 mm²
- Cross section (inflexible) (max.)
1.50 mm²
- AWG (min.)
24
- Connector orientation
At an angle (to the PCB)
- AWG max.
16
- Contact material
Cathode copper, tin plated
- Enclosure material
Polyamide
- Factory colour
Blue
- Wire protection
Yes
- Actuation direction
Perpendicular (to the PCB)
- Content
180 pc(s)
- Height
16.70 mm
- Length
12.00 mm
- Width
26.00 mm
- Industrial packaging
Yes
- Manufacturer part #
250-107/000-006
- Type
250-107/000-006
- Nominal voltage
160 V
- Nominal voltage (details)
2500 V
- Nominal current (details)
8 A
- Cross section
0.2 - 1.5 mm²
- Connection
Plug-in terminal connection
- Product type
Spring-loaded terminal
Documents & Downloads
Datasheet
Datasheet 743497 WAGO 250-107/000-006 Spring-loaded terminal 1.50 mm² Number of pins 7 Blue 180 pc(s)
Description

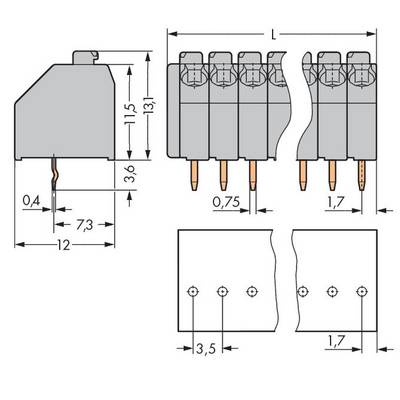

1 solder pin/pin front, 7-pin with push-wire connectors, grid pitch 3.5 mm/0.138 in, with test hole for test probe up to Ø 1.3 mm, blue.
