WAGO 260-327 Terminal 5 mm Pull spring Configuration: Terre Green, Yellow 300 pc(s)
EAN:
Part number:
Item no:
Connection
Pull spring
Cross section (flexible) (min.)
0.08 mm²
Cross section (flexible) (max.)
1.50 mm²
Cross section (inflexible) (min.)
0.08 mm²
Cross section (inflexible) (max.)
1.50 mm²
Datasheet (PDF)
Sales and shipping:
Number (Package size 300 pc(s))
Total (€ 0.45 / piece)
€
Highlights & Details

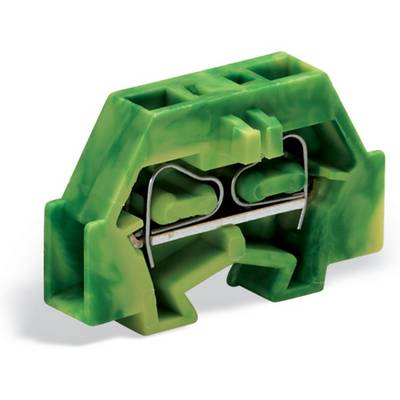

Space-saving, 2-conductor end terminal block
- 260-327
- Industrial packaging with 300 pieces
Technical specifications
- 2-COND.END.T.B. 1.5 SQMM GR./YELL
- Features
+ latch lock base
- Connection
Pull spring
- Configuration
Terre
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
1.50 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
1.50 mm²
- AWG (min.)
28
- AWG max.
16
- Clamp width
5 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Green
Yellow
- Nominal current
18 A
- Nominal current - rounded value
18 A
- Nominal voltage
400 V
- Min. stripping length
8 mm
- Stripping length (max.)
9 mm
- Manufacturer part #
260-327
- Content
300 pc(s)
- Industrial packaging
Yes
- Type
WAGO GmbH & Co. KG
- Dim
(W x H) 5 mm x 17 mm
- Width
5 mm
- Height
17 mm
- Product type
Terminal
Documents & Downloads
Datasheet
Datasheet 532620 WAGO 260-327 Terminal 5 mm Pull spring Configuration: Terre Green, Yellow 300 pc(s)
User & Safety Instructions
User & Safety Instructions 532620 WAGO 260-327 Terminal 5 mm Pull spring Configuration: Terre Green, Yellow 300 pc(s)
Description
Without the side protruding snap-in base, for terminal strip with snap in bases green-yellow.
