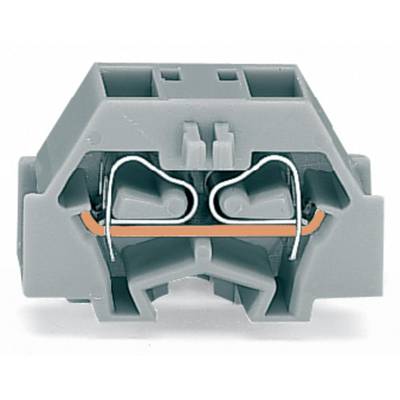

WAGO 260-351 Terminal 8 mm Pull spring Configuration: L Grey 300 pc(s)
EAN:
Part number:
Item no:
Connection
Pull spring
Cross section (flexible) (min.)
0.08 mm²
Cross section (flexible) (max.)
1.50 mm²
Cross section (inflexible) (min.)
0.08 mm²
Cross section (inflexible) (max.)
1.50 mm²
Datasheet (PDF)
Number (Package size 300 pc(s))
Total (€ 0.60 / piece)
€
Highlights & Details
Space-saving, 4-conductor end terminal block
- WAGO GmbH & Co. KG
Technical specifications
- 4-COND.END T.B. 1.5SQMM GREY
- Features
+ latch lock base
- Connection
Pull spring
- Configuration
L
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
1.50 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
1.50 mm²
- AWG (min.)
28
- AWG max.
16
- Clamp width
8 mm
- No. of rows
1
- Pins per row
4
- Number of pins
4
- Factory colour
Grey
- Nominal current
18 A
- Nominal current - rounded value
18 A
- Nominal voltage
400 V
- Min. stripping length
8 mm
- Stripping length (max.)
9 mm
- Manufacturer part #
260-351
- Content
300 pc(s)
- Industrial packaging
Yes
- Type
WAGO GmbH & Co. KG
- Dim
(W x H) 8 mm x 17 mm
- Width
8 mm
- Height
17 mm
- Contamination level
3
- Product type
Terminal
Documents & Downloads
Datasheet
Datasheet 532649 WAGO 260-351 Terminal 8 mm Pull spring Configuration: L Grey 300 pc(s)
User & Safety Instructions
User & Safety Instructions 532649 WAGO 260-351 Terminal 8 mm Pull spring Configuration: L Grey 300 pc(s)
Description
Without the side protruding snap-in base, for terminal strip with snap in bases gray.
