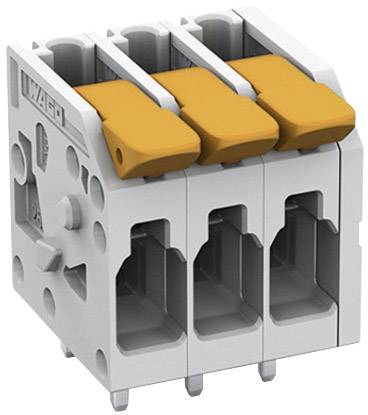

WAGO 2604-1103 Print terminal 4 mm² Number of pins 3 1 pc(s)
EAN:
Part number:
Item no:
Product type
Print terminal
CS
5 mm
Pins per row
3
Number of pins
3
Connection
Soldering
Spring-loaded heavy duty connector
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.51
10
7% = € 0.18
€ 2.33
25
10% = € 0.26
€ 2.25
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.51 / piece)
€ 2.51
plus VAT.
14-day return policy included

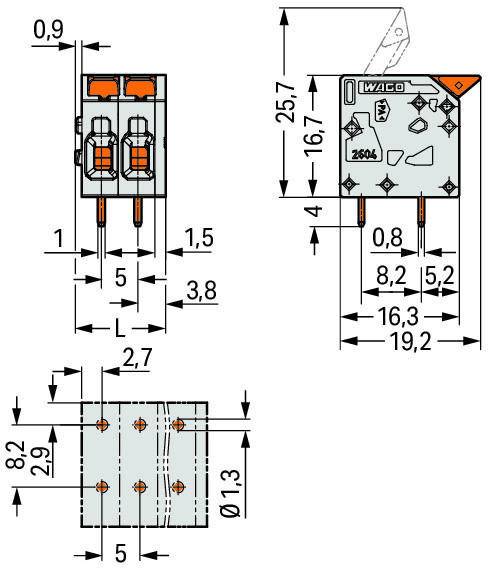

Technical specifications
- Type
2604-1103
- Product type
Print terminal
- Features
+ actuator
- CS
5 mm
- No. of rows
1
- Pins per row
3
- Number of pins
3
- Series
2604
- Min. stripping length
9 mm
- Stripping length (max.)
11 mm
- Connection
Soldering
Spring-loaded heavy duty connector
- Nominal current
66 A
- Cross section (flexible) (min.)
0.20 mm²
- Nominal current - rounded value
66 A
- Cross section (inflexible) (min.)
0.20 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (max.)
4 mm²
- Manufacturer part #
2604-1103
- Content
1 pc(s)
- Nominal voltage
600 V
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2129130 WAGO 2604-1103 Print terminal 4 mm² Number of pins 3 1 pc(s)
