WAGO 2604-1112 Print terminal 4 mm² Number of pins 12 1 pc(s)
EAN:
Part number:
Item no:
Product type
Print terminal
CS
5 mm
Pins per row
12
Number of pins
12
Connection
Soldering
Spring-loaded heavy duty connector
Datasheet (PDF)
Number
Total (€ 6.71 / piece)
€ 14.28
-53 %
€ 6.71
plus VAT.
14-day return policy included
Highlights & Details

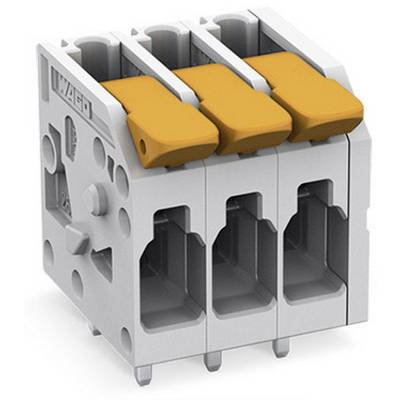

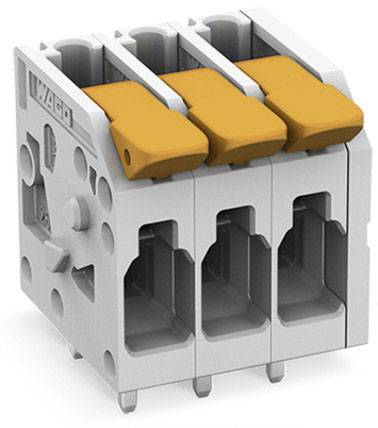

PCB terminal with lever
- Content 1 pc(s)
Our service for you
Technical specifications
- Type
2604-1112
- Product type
Print terminal
- Features
+ actuator
- CS
5 mm
- No. of rows
1
- Pins per row
12
- Number of pins
12
- Series
2604
- Connection
Soldering
Spring-loaded heavy duty connector
- Nominal current
32 A
- Cross section (flexible) (min.)
0.20 mm²
- Nominal current - rounded value
32 A
- Cross section (inflexible) (min.)
0.20 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (max.)
4 mm²
- Manufacturer part #
2604-1112
- Content
1 pc(s)
- Nominal voltage
630 V
- Width
62.40 mm
- Height
20.70 mm
- Length
19.20 mm
Documents & Downloads
Datasheet
Datasheet 2189641 WAGO 2604-1112 Print terminal 4 mm² Number of pins 12 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2189641 WAGO 2604-1112 Print terminal 4 mm² Number of pins 12 1 pc(s)
