WAGO 2604-1503 Print terminal 4 mm² Number of pins 3 1 pc(s)
EAN:
Part number:
Item no:
Product type
Print terminal
CS
11.50 mm
Pins per row
3
Number of pins
3
Connection
Spring-loaded heavy duty connector
Soldering
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 6.71
5
6% = € 0.41
€ 6.30
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 6.71 / piece)
€ 6.71
plus VAT.
14-day return policy included
Highlights & Details

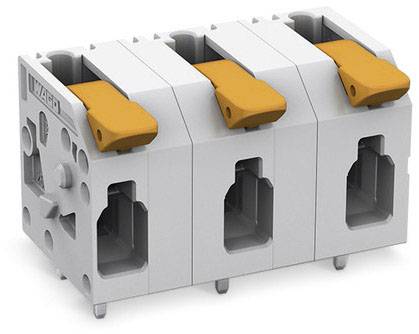

PCB terminal with lever
- Content 1 pc(s)
Our service for you
Technical specifications
- Type
2604-1503
- Product type
Print terminal
- Features
+ actuator
- CS
11.50 mm
- No. of rows
1
- Pins per row
3
- Number of pins
3
- Series
2604
- Connection
Spring-loaded heavy duty connector
Soldering
- Nominal current
32 A
- Cross section (flexible) (min.)
0.20 mm²
- Nominal current - rounded value
32 A
- Cross section (inflexible) (min.)
0.20 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (max.)
4 mm²
- Manufacturer part #
2604-1503
- Content
1 pc(s)
- Nominal voltage
1000 V
- Width
30.40 mm
- Height
20.70 mm
- Length
19.20 mm
Documents & Downloads
Datasheet
Datasheet 2189637 WAGO 2604-1503 Print terminal 4 mm² Number of pins 3 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2189637 WAGO 2604-1503 Print terminal 4 mm² Number of pins 3 1 pc(s)
