WAGO 2604-3102 Print terminal 4 mm² Number of pins 2 1 pc(s)
EAN:
Part number:
Item no:
Product type
Print terminal
CS
5 mm
Pins per row
2
Number of pins
2
Connection
Soldering
Spring-loaded heavy duty connector
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.67
10
8% = € 0.13
€ 1.54
25
11% = € 0.18
€ 1.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.67 / piece)
€ 2.09
-20 %
€ 1.67
plus VAT.
14-day return policy included
Highlights & Details

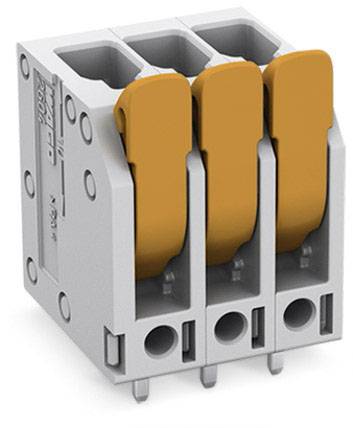

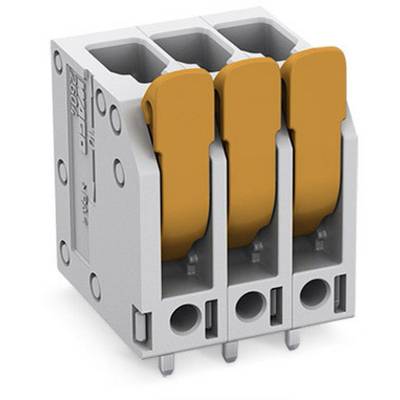

PCB terminal with lever
- Content 1 pc(s)
Technical specifications
- Type
2604-3102
- Product type
Print terminal
- Features
+ actuator
- CS
5 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Series
2604
- Connection
Soldering
Spring-loaded heavy duty connector
- Nominal current
32 A
- Cross section (flexible) (min.)
0.20 mm²
- Nominal current - rounded value
32 A
- Cross section (inflexible) (min.)
0.20 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
12
- AWG max.
24
- Manufacturer part #
2604-3102
- Content
1 pc(s)
- Nominal voltage
630 V
- Width
12.40 mm
- Height
25.30 mm
- Length
16.70 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2189644 WAGO 2604-3102 Print terminal 4 mm² Number of pins 2 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2189644 WAGO 2604-3102 Print terminal 4 mm² Number of pins 2 1 pc(s)
