WAGO 261-157/331-000 Punch-down block 6 mm Pull spring Configuration: L Grey 50 pc(s)
EAN:
Part number:
Item no:
Product type
Punch-down block
Connection
Pull spring
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
2.50 mm²
Nominal current - rounded value
24 A
Datasheet (PDF)
Sales and shipping:
Number (Package size 50 pc(s))
Total (€ 4.12 / piece)
€
Highlights & Details
2-wire terminal strip
- 261-157/331-000
- Industrial packaging, pack of 50
Technical specifications
- Product type
Punch-down block
- Features
+ latch lock base
One-sided + actuator
- Connection
Pull spring
- Configuration
L
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
28
- AWG max.
14
- Clamp width
6 mm
- No. of rows
7
- Pins per row
2
- Number of pins
14
- Factory colour
Grey
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
500 V
- Min. stripping length
8 mm
- Stripping length (max.)
9 mm
- Manufacturer part #
261-157/331-000
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
261-157/331-000

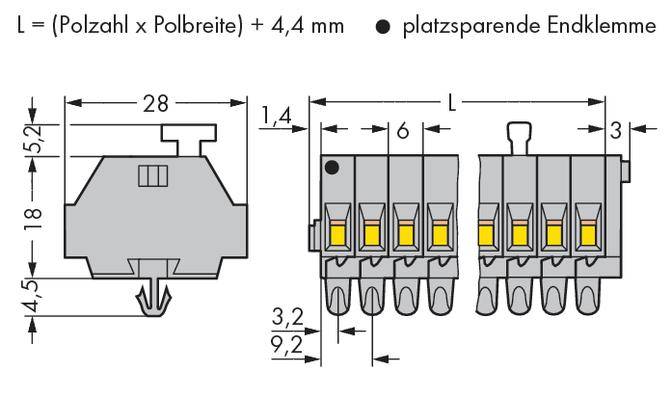

- Dim
(W x H) 34.40 mm x 23.20 mm
- Width
34.40 mm
- Height
23.20 mm
- Contamination level
3
Documents & Downloads
Datasheet
Datasheet 533119 WAGO 261-157/331-000 Punch-down block 6 mm Pull spring Configuration: L Grey 50 pc(s)
Description
On one side with lever, with snap-in bases for plate thickness 0,40914,2 mm, mounting hole Ø 3.5 mm, even on aluminum rail 210-154 or 209-120 with mounting base on TS35, 7-pin, gray.
