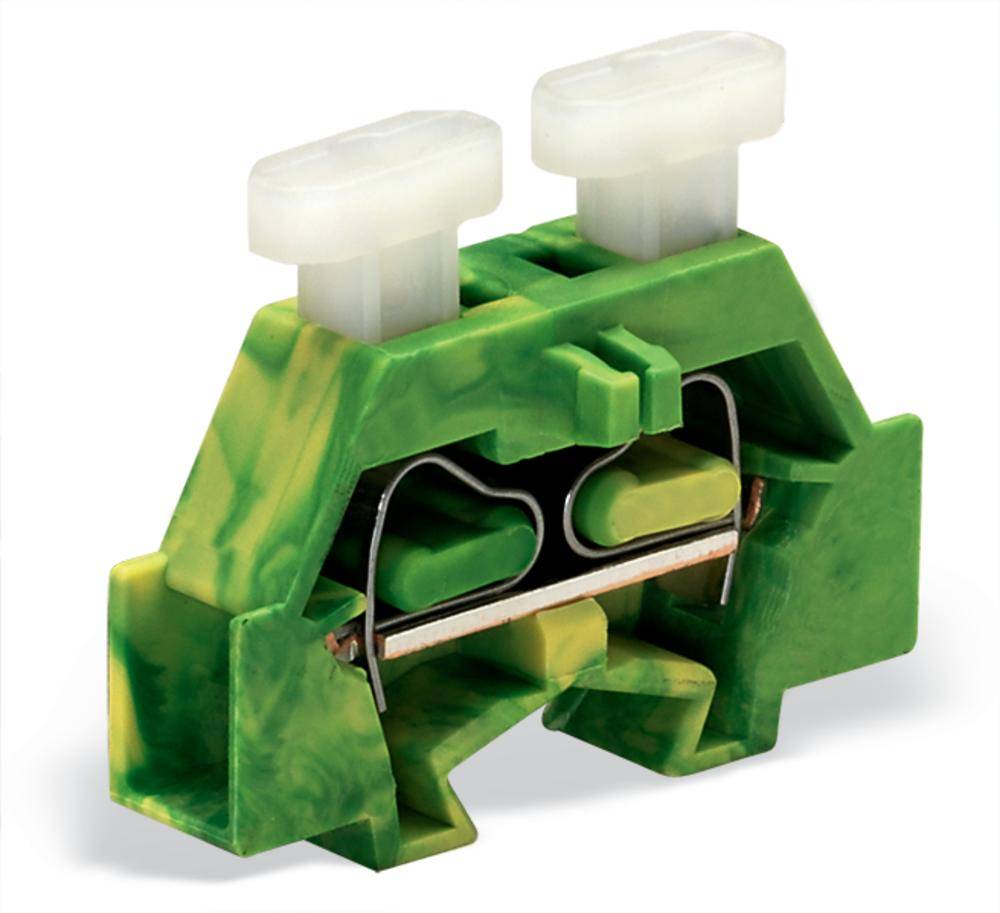

WAGO 261-327/341-000 Terminal 6 mm Pull spring Configuration: Terre Green, Yellow 200 pc(s)
EAN:
Part number:
Item no:
Product type
Terminal
Connection
Pull spring
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
2.50 mm²
Nominal current - rounded value
24 A
Datasheet (PDF)
Number (Package size 200 pc(s))
Total (€ 0.61 / piece)
€ 121.84
plus VAT.
14-day return policy included
Highlights & Details
Space-saving, 2-conductor end terminal block
- 261-327/341-000
- 200 pieces/bag
Technical specifications
- END TERM BLK W/PB 2-SIDES GRN/YLW
- Product type
Terminal
- Features
+ latch lock base
Two-sided + actuator
- Connection
Pull spring
- Configuration
Terre
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
28
- AWG max.
14
- Clamp width
6 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Green
Yellow
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
500 V
- Min. stripping length
8 mm
- Stripping length (max.)
9 mm
- Manufacturer part #
261-327/341-000
- Content
200 pc(s)
- Industrial packaging
Yes
- Type
261-327/341-000
- Dim
(W x H) 6 mm x 23.20 mm
- Width
6 mm
- Height
23.20 mm
Documents & Downloads
Datasheet
Datasheet 533832 WAGO 261-327/341-000 Terminal 6 mm Pull spring Configuration: Terre Green, Yellow 200 pc(s)
User & Safety Instructions
User & Safety Instructions 533832 WAGO 261-327/341-000 Terminal 6 mm Pull spring Configuration: Terre Green, Yellow 200 pc(s)
Description
Both sides with lever, without the side of excess catch for terminal strip with snap in bases, green-yellow.
