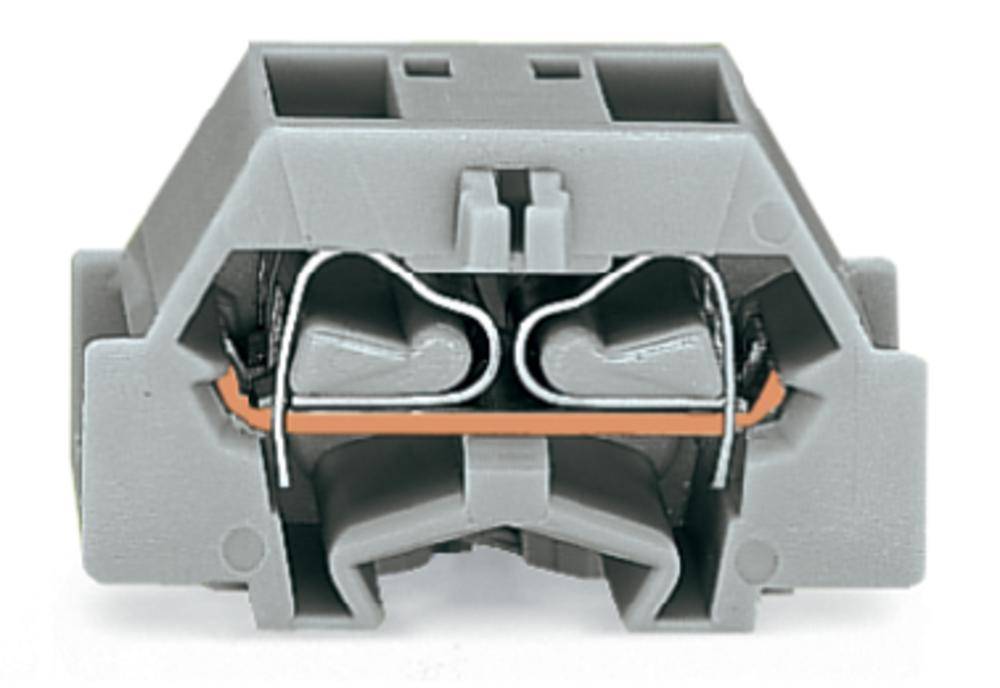

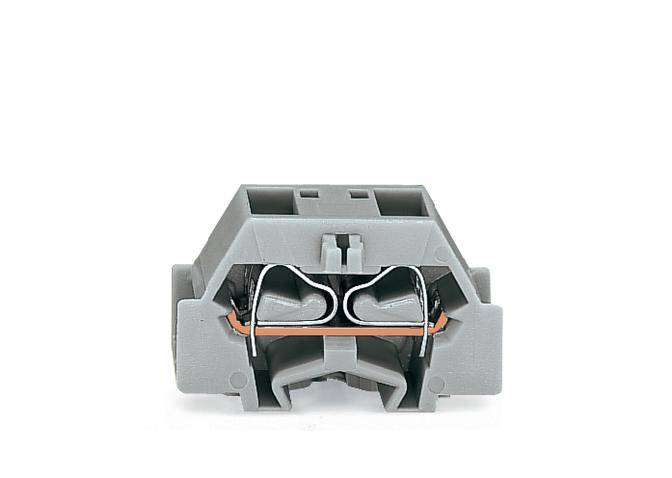

WAGO 261-331 Terminal 10 mm Pull spring Configuration: L Grey 200 pc(s)
EAN:
Part number:
Item no:
Product type
Terminal
Connection
Pull spring
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
2.50 mm²
Nominal current - rounded value
24 A
Datasheet (PDF)
Number (Package size 200 pc(s))
Total (€ 0.84 / piece)
€ 168.06
plus VAT.
Highlights & Details
4-conductor terminal block
- 261-331
- 200 pieces/bag
Technical specifications
- 4-COND.T.B. 2.5SQMM GREY W.FLANGE
- Product type
Terminal
- Features
+ sleeve
- Connection
Pull spring
- Configuration
L
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
28
- AWG max.
14
- Clamp width
10 mm
- No. of rows
1
- Pins per row
4
- Number of pins
4
- Factory colour
Grey
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
500 V
- Min. stripping length
8 mm
- Stripping length (max.)
9 mm
- Manufacturer part #
261-331
- Content
200 pc(s)
- Industrial packaging
Yes
- Type
261-331
- Dim
(W x H) 10 mm x 18 mm
- Width
10 mm
- Height
18 mm
- Contamination level
3
Documents & Downloads
Datasheet
Datasheet 533833 WAGO 261-331 Terminal 10 mm Pull spring Configuration: L Grey 200 pc(s)
User & Safety Instructions
User & Safety Instructions 533833 WAGO 261-331 Terminal 10 mm Pull spring Configuration: L Grey 200 pc(s)
Description
With mounting flange, for screw mounting hole Ø 3.2 mm, among other things, mounting types with mounting base 209-123 also on TS 35, gray.
