WAGO 261-427 Punch-down block 6 mm Pull spring Configuration: L Grey 50 pc(s)
EAN:
Part number:
Item no:
Connection
Pull spring
Cross section (flexible) (min.)
0.08 mm²
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (min.)
0.08 mm²
Cross section (inflexible) (max.)
2.50 mm²
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 3.19 / piece)
€
Highlights & Details
2-conductor terminal strip
- 261-427
- Industrial packaging, pack of 50
Technical specifications
- MOD TERM STR 7-POS W/FIX FLANGE
- Features
+ sleeve
- Connection
Pull spring
- Configuration
L
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
28
- AWG max.
14
- Clamp width
6 mm
- No. of rows
7
- Pins per row
2
- Number of pins
14
- Factory colour
Grey
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
500 V
- Min. stripping length
8 mm
- Stripping length (max.)
9 mm
- Manufacturer part #
261-427
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
WAGO GmbH & Co. KG

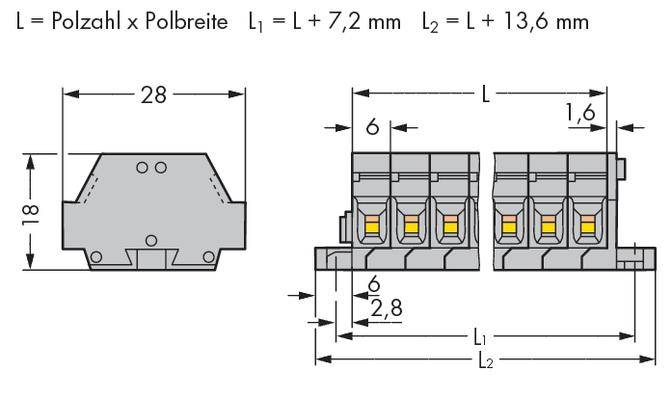

- Dim
(W x H) 55.60 mm x 18 mm
- Width
55.60 mm
- Height
18 mm
- Weight
18.5 g
- Product type
Punch-down block
Documents & Downloads
Datasheet
Datasheet 533988 WAGO 261-427 Punch-down block 6 mm Pull spring Configuration: L Grey 50 pc(s)
User & Safety Instructions
User & Safety Instructions 533988 WAGO 261-427 Punch-down block 6 mm Pull spring Configuration: L Grey 50 pc(s)
Description
With mounting flanges, for screw mounting hole Ø 3.2 mm, among other things, mounting types with mounting base 209-123 also on TS 35, without actuator, 7-pin, gray.
