WAGO 262-185 Punch-down block 7 mm Pull spring Configuration: L Grey 100 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Punch-down block
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
Number (Package size 100 pc(s))
Total (€ 3.69 / piece)
€ 368.91
plus VAT.
14-day return policy included
Highlights & Details
2-conductor Ex e II terminal strip
- 262-185
Technical specifications
- MOD TRM STRP-1-SLF FIX EX
- Packaging type
Piece
- Product type
Punch-down block
- Features
+ latch lock base
Complies with ATEX Ex-e II standards
- Connection
Pull spring
- Configuration
L
- Cross section (flexible) (min.)
0.50 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.50 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
20
- AWG max.
12
- Clamp width
7 mm
- No. of rows
5
- Pins per row
2
- Number of pins
10
- Factory colour
Grey
- Nominal current
23 A
- Nominal current - rounded value
23 A
- Nominal voltage
550 V
- Min. stripping length
9 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
262-185
- Content
100 pc(s)
- Industrial packaging
Yes
- Type
262-185

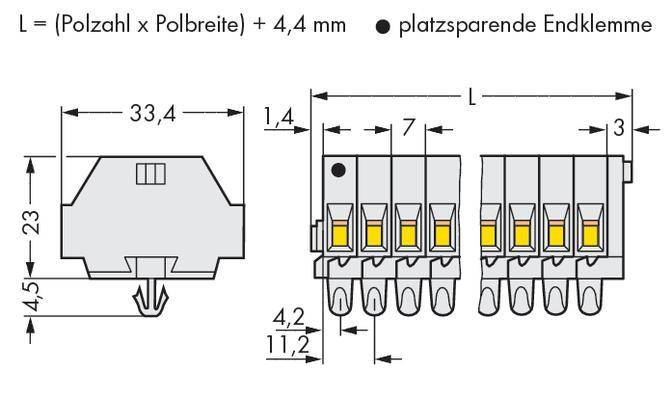

- Dim
(W x H) 39.40 mm x 23 mm
- Width
39.40 mm
- Height
23 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 534621 WAGO 262-185 Punch-down block 7 mm Pull spring Configuration: L Grey 100 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 534621 WAGO 262-185 Punch-down block 7 mm Pull spring Configuration: L Grey 100 pc(s) Piece
Description
With snap in bases, for plate thickness 0409 14.2 mm, mounting hole Ø 3.5 mm, even on aluminum rail 210-154 or 209-120 with mounting base on TS 35, complies with ATEX Ex-e II, 5-pin, light gray.
