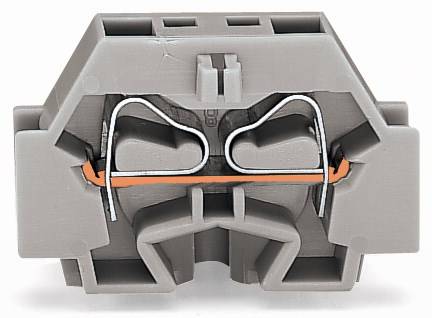

WAGO 262-316 Terminal 7 mm Pull spring Orange 100 pc(s) Package
EAN:
Part number:
Item no:
Packaging type
Package
Product type
Terminal
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
Highlights & Details
2-conductor terminal
- 262-316
- Industrial packaging with 100 pieces
- This text is machine translated.
Technical specifications
- Packaging type
Package
- Product type
Terminal
- Features
+ latch lock base
- Connection
Pull spring
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
28
- AWG max.
12
- Clamp width
7 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Orange
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
630 V
- Stripping length (max.)
9 mm
- Manufacturer part #
262-316
- Content
100 pc(s)
- Industrial packaging
Yes
- Type
262-316
- Dim
(L x W x H) 7 x 7 x 23 mm
- Width
7 mm
- Height
23 mm
- Length
7 mm
- Contamination level
3
- Weight
4.22 g
- Connector colour
Orange
Documents & Downloads
Datasheet
Datasheet 652071 WAGO 262-316 Terminal 7 mm Pull spring Orange 100 pc(s) Package
User & Safety Instructions
User & Safety Instructions 652071 WAGO 262-316 Terminal 7 mm Pull spring Orange 100 pc(s) Package
