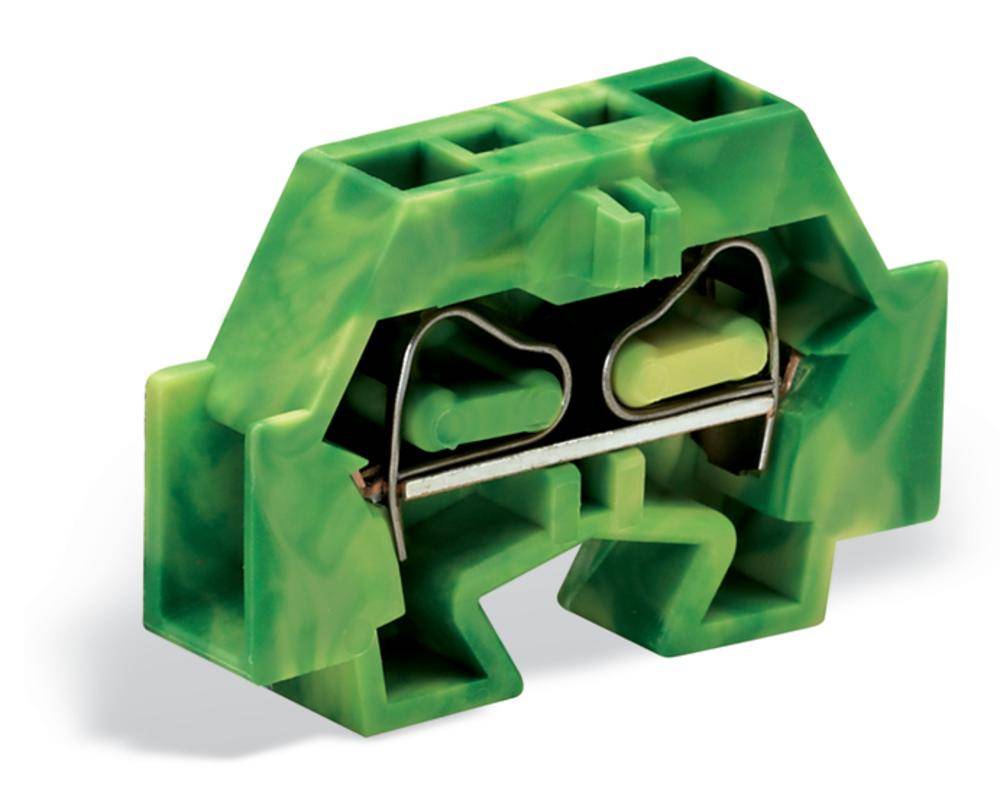

WAGO 262-327 Terminal 7 mm Pull spring Configuration: Terre Green, Yellow 100 pc(s)
EAN:
Part number:
Item no:
Product type
Terminal
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
24 A
Datasheet (PDF)
Number (Package size 100 pc(s))
Total (€ 0.79 / piece)
€ 78.98
plus VAT.
Highlights & Details
Space-saving, 2-conductor end terminal block
- 262-327
- Industrial packaging with 100 pieces
Technical specifications
- TERMINAL BLOCK 2-COND. GREEN/YELLOW
- Product type
Terminal
- Features
+ latch lock base
- Connection
Pull spring
- Configuration
Terre
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
28
- AWG max.
12
- Clamp width
7 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Green
Yellow
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
630 V
- Min. stripping length
9 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
262-327
- Content
100 pc(s)
- Industrial packaging
Yes
- Type
262-327
- Dim
(W x H) 7 mm x 23 mm
- Width
7 mm
- Height
23 mm
Documents & Downloads
Datasheet
Datasheet 534795 WAGO 262-327 Terminal 7 mm Pull spring Configuration: Terre Green, Yellow 100 pc(s)
User & Safety Instructions
User & Safety Instructions 534795 WAGO 262-327 Terminal 7 mm Pull spring Configuration: Terre Green, Yellow 100 pc(s)
Description
Without the side protruding snap-in base, for terminal strip with snap in bases green-yellow.
