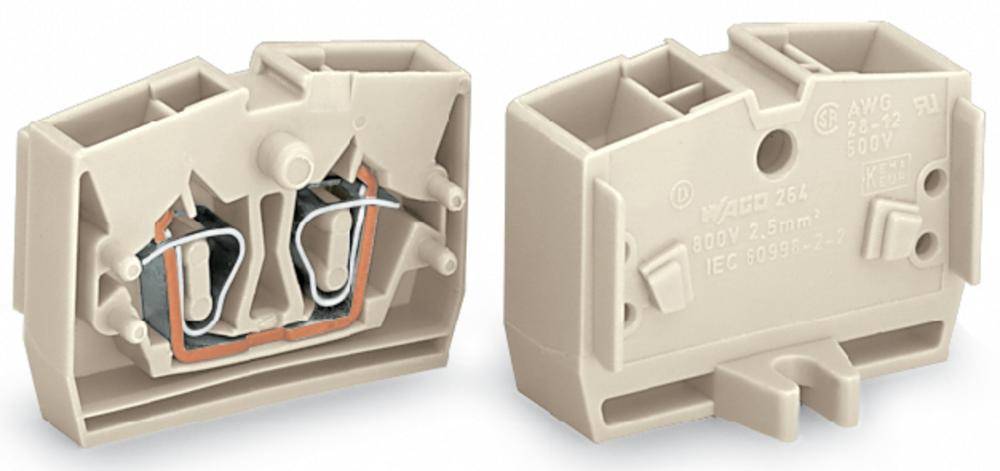

WAGO 264-130 Terminal 6 mm Pull spring Configuration: L Grey 100 pc(s)
EAN:
Part number:
Item no:
Product type
Terminal
Connection
Pull spring
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
2.50 mm²
Nominal current - rounded value
23 A
Datasheet (PDF)
Number (Package size 100 pc(s))
Total (€ 0.97 / piece)
€ 96.63
plus VAT.
14-day return policy included
Highlights & Details
2-conductor Ex e II end terminal block
- 264-130
- Industrial packaging with 100 pieces
Technical specifications
- 2-COND.EX END T.BL.W.FLANGE
- Product type
Terminal
- Features
+ sleeve
Complies with ATEX Ex-e II standards
- Connection
Pull spring
- Configuration
L
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
28
- AWG max.
14
- Clamp width
6 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Grey
- Nominal current
23 A
- Nominal current - rounded value
23 A
- Nominal voltage
690 V
- Min. stripping length
8 mm
- Stripping length (max.)
9 mm
- Manufacturer part #
264-130
- Content
100 pc(s)
- Industrial packaging
Yes
- Type
264-130
- Dim
(W x H) 6 mm x 22.10 mm
- Width
6 mm
- Height
22.10 mm
Other
Grey
6
TRUE
32 mm
22.1 mm
690 V
1
105-105 °C
V0
TRUE
Spring clamp connection
Spring clamp connection
FALSE
0.5-2.5 mm²
0.75-1.5 mm²
0.5-2.5 mm²
0.5-2.5 mm²
Thermoplastic
23 A
TRUE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 534859 WAGO 264-130 Terminal 6 mm Pull spring Configuration: L Grey 100 pc(s)
User & Safety Instructions
User & Safety Instructions 534859 WAGO 264-130 Terminal 6 mm Pull spring Configuration: L Grey 100 pc(s)
Description
With mounting flange, for screw mounting hole Ø 3.2 mm, among other things, mounting types Complies with ATEX Ex-e II, light gray.
