Buy WAGO 264-324 Terminal 6 mm Pull spring Configuration: N Blue 1 pc(s) Piece

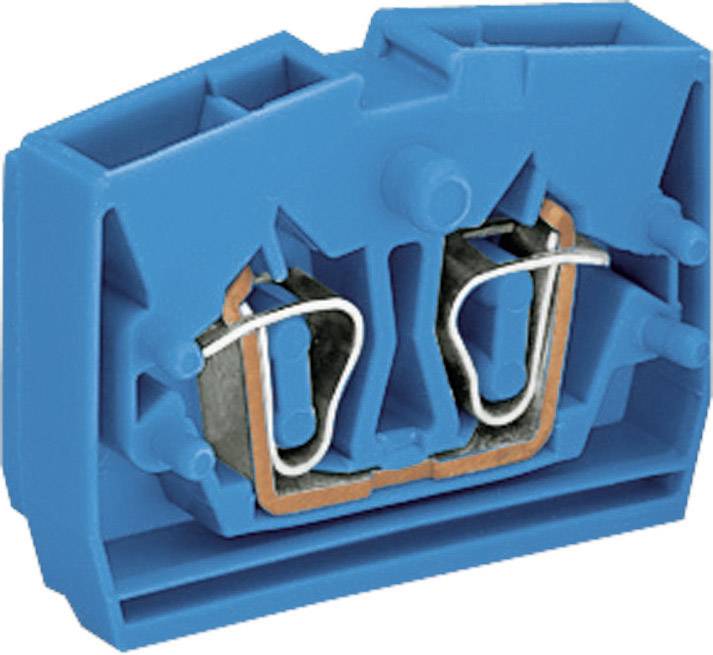

Blue electrical connection block with two copper contacts and a wire bridge, top view.

Colourful storage box with vertical stripes in various colours, including orange, blue, grey, and yellow-green, arranged in a row.

Terminals with multiple coloured connections in blue, yellow, and orange, suitable for electrical use in distribution systems.

1/3

Packaging type

Piece

Product type

Terminal

Connection

Pull spring

Cross section (flexible) (max.)

2.50 mm²

Cross section (inflexible) (max.)

2.50 mm²

Datasheet (PDF)

Fast track dispatch on Mon, 12 Oct

165 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 1.25 / piece)

€ 1.25

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Packaging type: Piece

Product type: Terminal

Features: + CAGE CLAMP®

Connection: Pull spring

Configuration: N

Cross section (flexible) (min.): 0.08 mm²

Cross section (flexible) (max.): 2.50 mm²

Cross section (inflexible) (min.): 0.08 mm²

Cross section (inflexible) (max.): 2.50 mm²

AWG (min.): 28

AWG max.: 14

Clamp width: 6 mm

No. of rows: 1

Pins per row: 2

Number of pins: 2

Factory colour: Blue

Nominal current: 24 A

Nominal current - rounded value: 24 A

Nominal voltage: 800 V

Min. stripping length: 8 mm

Stripping length (max.): 9 mm

Manufacturer part #: 264-324

Content: 1 pc(s)

Type: 264-324

Width: 6 mm

Connector colour: Blue

Type: 2-conductors

Nominal voltage (details): 800 V

Nominal current (details): 24 A

Documents & Downloads

Datasheet

Datasheet 744984 WAGO 264-324 Terminal 6 mm Pull spring Configuration: N Blue 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 744984 WAGO 264-324 Terminal 6 mm Pull spring Configuration: N Blue 1 pc(s) Piece

Description

Stackable single terminal blocks with CAGE CLAMP® connection for single, multiple and fine-stranded copper conductors. The centre terminal blocks can easily be connected to one another. An end plate is fixed on one end and an end terminal block on the other end (both with mounting flange for screwing on the terminal strip).
