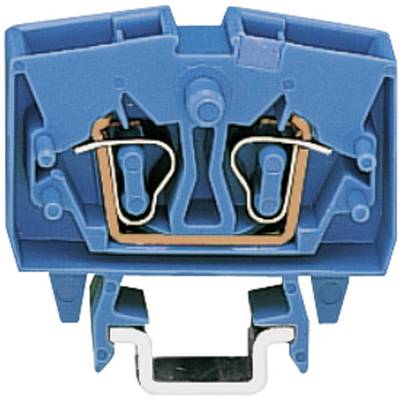

WAGO 264-704 Continuity 6 mm Pull spring Configuration: N Blue 1 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Pull spring
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
2.50 mm²
Nominal current - rounded value
24 A
Datasheet (PDF)
Number
Total (€ 0.65 / piece)
€ 0.65
plus VAT.
Highlights & Details
WAGO 264-704 Continuity 6 mm Pull spring Configuration: N Blue 1 pc(s)
- Mounting on TS 15
Technical specifications
- Product type
Continuity
- Connection
Pull spring
- Configuration
N
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
28
- AWG max.
14
- Clamp width
6 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Blue
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
800 V
- Min. stripping length
8 mm
- Stripping length (max.)
9 mm
- Manufacturer part #
264-704
- Content
1 pc(s)
- Type
264-704
- Dim
(W x H) 6 mm x 24.50 mm
- Width
6 mm
- Height
24.50 mm
- Compatible with (details)
TS 15
- Type
2-conductor through terminal
- Nominal voltage (details)
800 V
- Nominal current (details)
24 A
Documents & Downloads
Datasheet
Datasheet 745206 WAGO 264-704 Continuity 6 mm Pull spring Configuration: N Blue 1 pc(s)
User & Safety Instructions
User & Safety Instructions 745206 WAGO 264-704 Continuity 6 mm Pull spring Configuration: N Blue 1 pc(s)
Description
Stackable mini through terminals and earth conductor terminals with CAGE-CLAMP® connections for single, multiple and fine stranded copper conductors. The mini terminals are simply plugged together. End plates and intermediate plates cover the ends or define groups
Hints
Suitable for Ex i applications.
