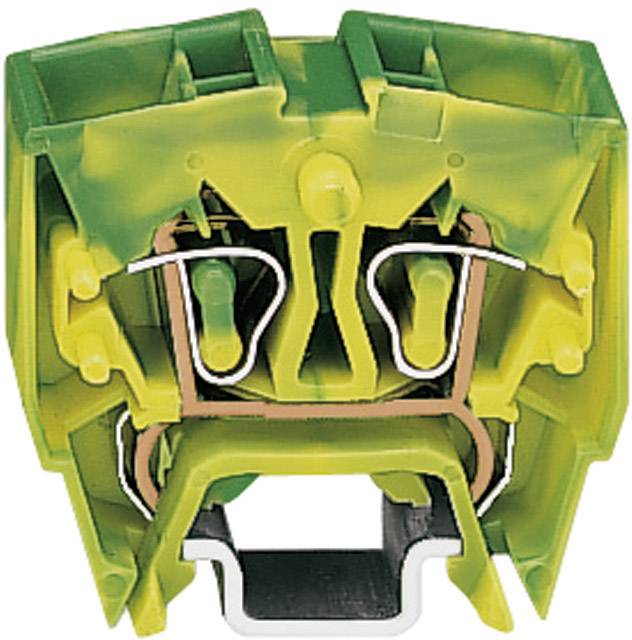

WAGO 264-727 PG terminal 10 mm Pull spring Configuration: Terre Green, Yellow 1 pc(s)
EAN:
Part number:
Item no:
Product type
PG terminal
Connection
Pull spring
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
2.50 mm²
Nominal current - rounded value
24 A
Datasheet (PDF)
185 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.51
10
7% = € 0.18
€ 2.33
25
10% = € 0.26
€ 2.25
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.51 / piece)
€
Highlights & Details
WAGO 264-727 PG terminal 10 mm Pull spring Configuration: Terre Green, Yellow 1 pc(s)
- Mounting on TS 15
Technical specifications
- Product type
PG terminal
- Connection
Pull spring
- Configuration
Terre
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
28
- AWG max.
14
- Clamp width
10 mm
- No. of rows
1
- Pins per row
4
- Number of pins
4
- Factory colour
Green
Yellow
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Min. stripping length
8 mm
- Stripping length (max.)
9 mm
- Manufacturer part #
264-727
- Content
1 pc(s)
- Type
Durchgangsklemme
- Dim
(W x H) 10 mm x 24.50 mm
- Width
10 mm
- Height
24.50 mm
- Compatible with (details)
TS 15
- Type
4-conductor protective conductor terminal
- Nominal voltage (details)
800 V
- Nominal current (details)
24 A
Documents & Downloads
Datasheet
Datasheet 745280 WAGO 264-727 PG terminal 10 mm Pull spring Configuration: Terre Green, Yellow 1 pc(s)
Datasheet 745280 WAGO 264-727 PG terminal 10 mm Pull spring Configuration: Terre Green, Yellow 1 pc(s)
User & Safety Instructions
User & Safety Instructions 745280 WAGO 264-727 PG terminal 10 mm Pull spring Configuration: Terre Green, Yellow 1 pc(s)
Description
Stackable mini through terminals and earth conductor terminals with CAGE-CLAMP® connections for single, multiple and fine stranded copper conductors. The mini terminals are simply plugged together. End plates and intermediate plates cover the ends or define groups
