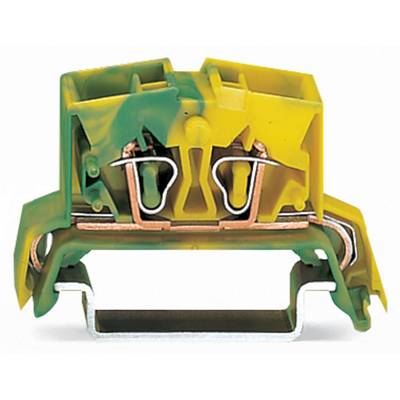

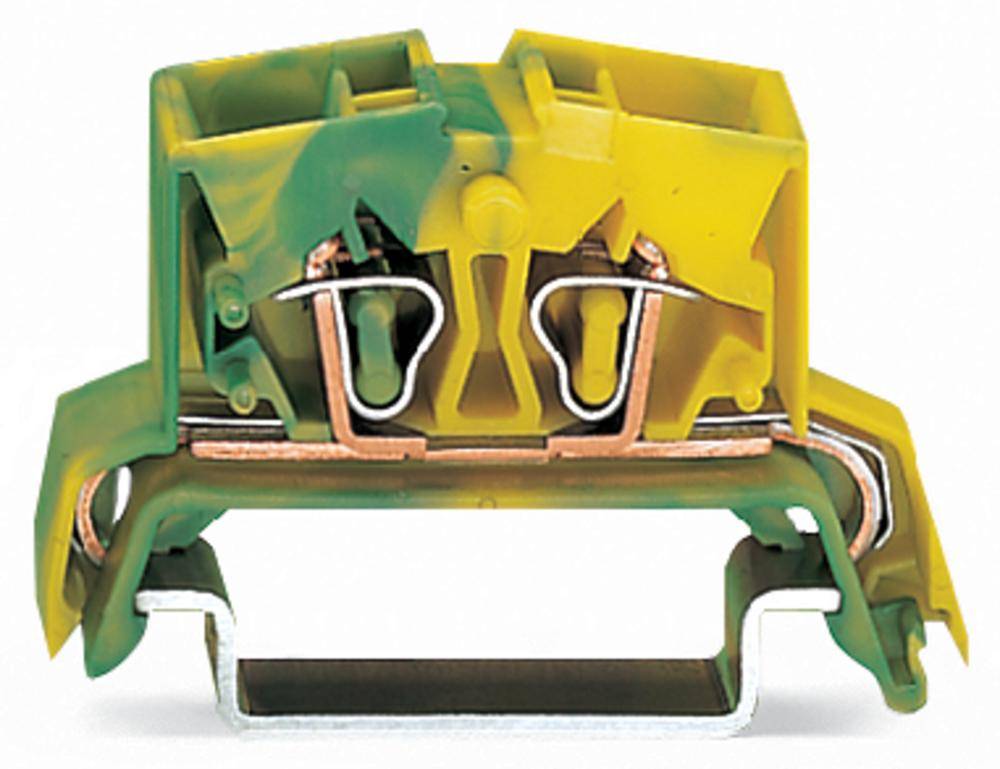

WAGO 264-737/999-950 PG terminal 10 mm Pull spring Configuration: Terre Green, Yellow 100 pc(s)
EAN:
Part number:
Item no:
Product type
PG terminal
Connection
Pull spring
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
2.50 mm²
Nominal current - rounded value
24 A
Datasheet (PDF)
Number (Package size 100 pc(s))
Total (€ 2.34 / piece)
€ 234.45
plus VAT.
14-day return policy included
Highlights & Details
4-conductor miniature ground terminal block
- 264-737/999-950
Technical specifications
- 4-COND. GR.(EARTH) T.BL. 2.5SQMM G/Y
- Product type
PG terminal
- Features
Complies with ATEX Ex-e II standards
- Connection
Pull spring
- Configuration
Terre
- Cross section (flexible) (min.)
0.50 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (min.)
0.50 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
20
- AWG max.
14
- Clamp width
10 mm
- No. of rows
1
- Pins per row
4
- Number of pins
4
- Factory colour
Green
Yellow
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Min. stripping length
8 mm
- Stripping length (max.)
9 mm
- Manufacturer part #
264-737/999-950
- Content
100 pc(s)
- Industrial packaging
Yes
- Type
264-737/999-950
- Dim
(W x H) 10 mm x 24.50 mm
- Width
10 mm
- Height
24.50 mm
DIN rail (top hat rail) 35 mm
Green/yellow
10
46.5 mm
24.5 mm
105-105 °C
V0
TRUE
Spring clamp connection
Spring clamp connection
1
4
0.08-2.5 mm²
0.25-1.5 mm²
0.08-2.5 mm²
0.08-2.5 mm²
Thermoplastic
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 535055 WAGO 264-737/999-950 PG terminal 10 mm Pull spring Configuration: Terre Green, Yellow 100 pc(s)
User & Safety Instructions
User & Safety Instructions 535055 WAGO 264-737/999-950 PG terminal 10 mm Pull spring Configuration: Terre Green, Yellow 100 pc(s)
Description
Complies with ATEX Ex-e II, green-yellow.
