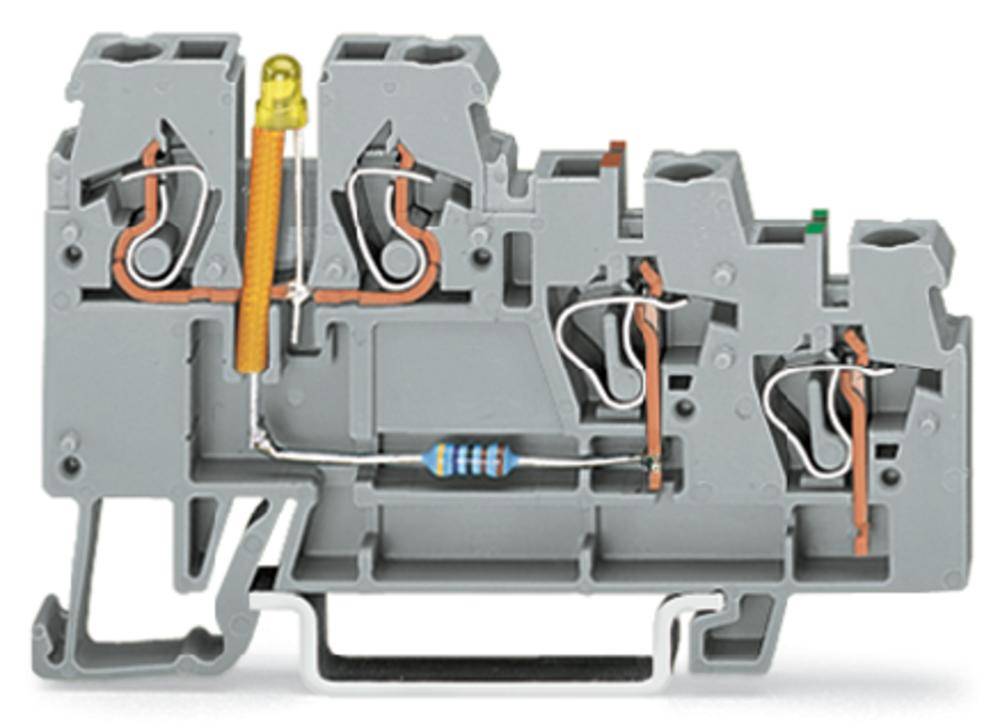

WAGO 270-585/281-507 Actuator terminal 5 mm Pull spring Configuration: L Grey 50 pc(s)
EAN:
Part number:
Item no:
Product type
Actuator terminal
Connection
Pull spring
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
2.50 mm²
Content
50 pc(s)
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 6.97 / piece)
€ 348.74
plus VAT.
14-day return policy included
Highlights & Details
3-conductor actuator LED terminal block
- 270-585/281-507
- Industrial packaging, pack of 50
Technical specifications
- 3L-AKTOREN-LED-KLEMME GRAU
- Product type
Actuator terminal
- Features
+ yellow LED
- Connection
Pull spring
- Configuration
L
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
28
- AWG max.
14
- Clamp width
5 mm
- No. of rows
3
- Number of pins
4
- Factory colour
Grey
- Nominal voltage
24 V
- Min. stripping length
6 mm
- Stripping length (max.)
7 mm
- Manufacturer part #
270-585/281-507
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
270-585/281-507

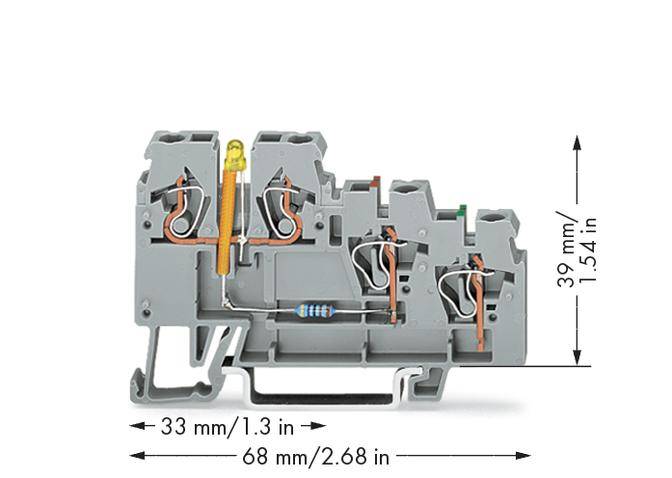

- Width
5 mm
- Connector colour
Grey
Documents & Downloads
Datasheet
Datasheet 535232 WAGO 270-585/281-507 Actuator terminal 5 mm Pull spring Configuration: L Grey 50 pc(s)
User & Safety Instructions
User & Safety Instructions 535232 WAGO 270-585/281-507 Actuator terminal 5 mm Pull spring Configuration: L Grey 50 pc(s)
Description

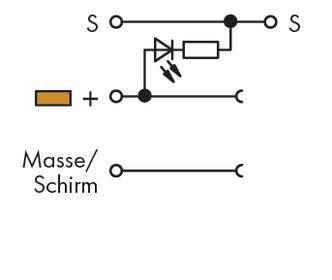

For NPN (minus) switching actuators, yellow LED, DC 24 V, gray.
