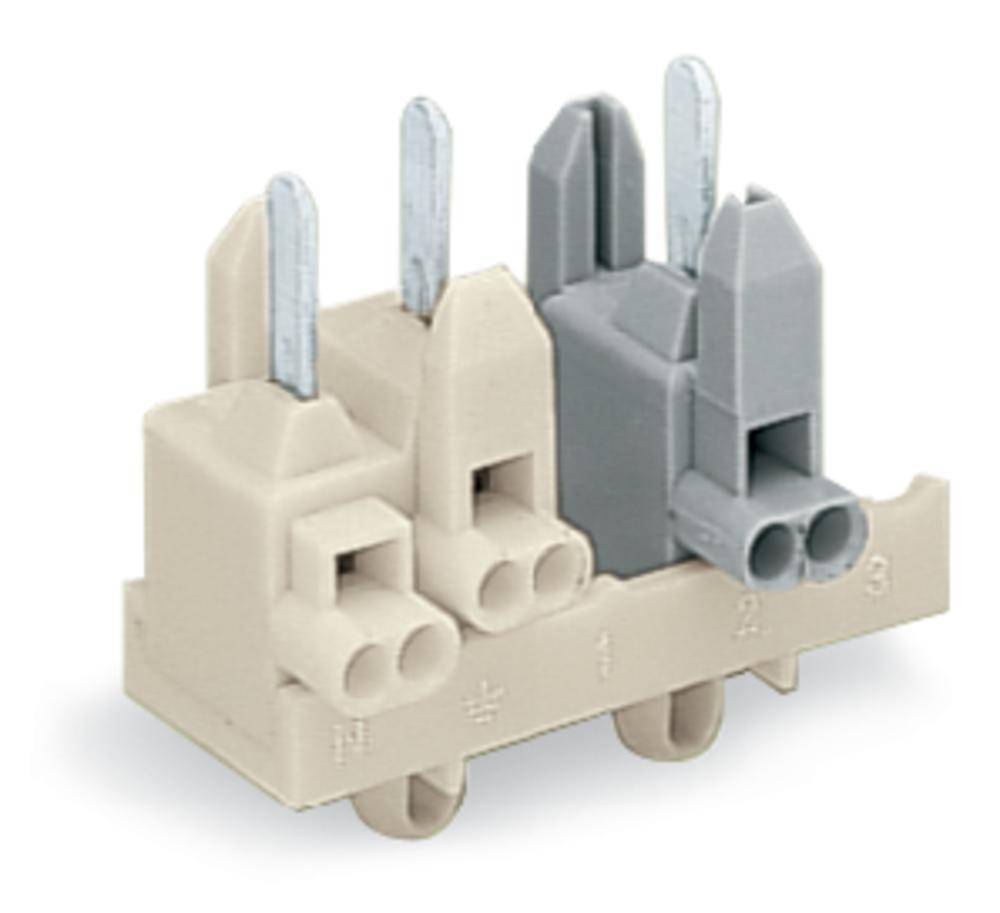

WAGO 277-124 WAGO GmbH & Co. KG Connector clip flexible: - fixed: 0.5-1 mm² Number of pins: 4 500 pc(s) White
EAN:
Part number:
Item no:
Nominal current - rounded value
10 A
Series
277
Cross section (inflexible) (max.)
1 mm²
Cross section (inflexible) (min.)
0.5 mm²
Number of pins
4
Datasheet (PDF)
Sales and shipping:
Number (Package size 500 pc(s))
Total (€ 1,785.71 / piece)
€
Highlights & Details
Male connector
- 277-124
- Industrial packaging with 500 pieces
Technical specifications
- MALE CONN. 1 SQMM 4 POL. W. FIX.
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Content
500 pc(s)
- Manufacturer part #
277-124
- Factory colour
White
- Width
25 mm
- Industrial packaging
Yes
- Connector clip features
Snap-in base
- Connection
Quick-connect
- Series
277
- Nominal voltage
400 V
- Cross section (inflexible) (max.)
1 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Number of pins
4
- Insulation material
PA 6.6
- Stripping length
10 - 11 mm
20 - 18
- Contact material
Cathode copper
- Temperature range
-60 - +105 °C
- Product type
Connector clip
Documents & Downloads
Datasheet
Datasheet 535259 WAGO 277-124 WAGO GmbH & Co. KG Connector clip flexible: - fixed: 0.5-1 mm² Number of pins: 4 500 pc(s) White
Description
With snap-in base, 4-pin with the splashes06, can be shifted, white.
