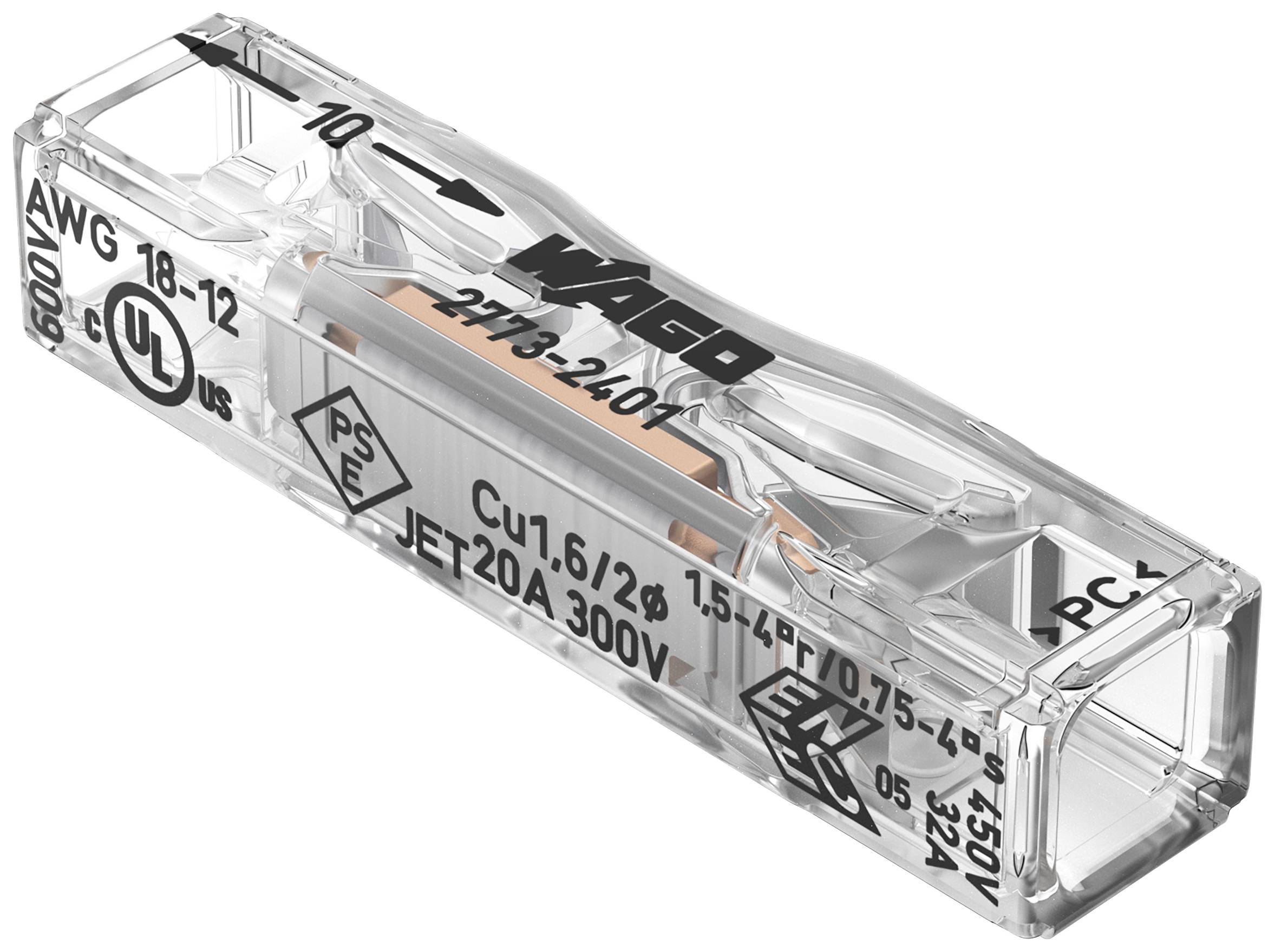

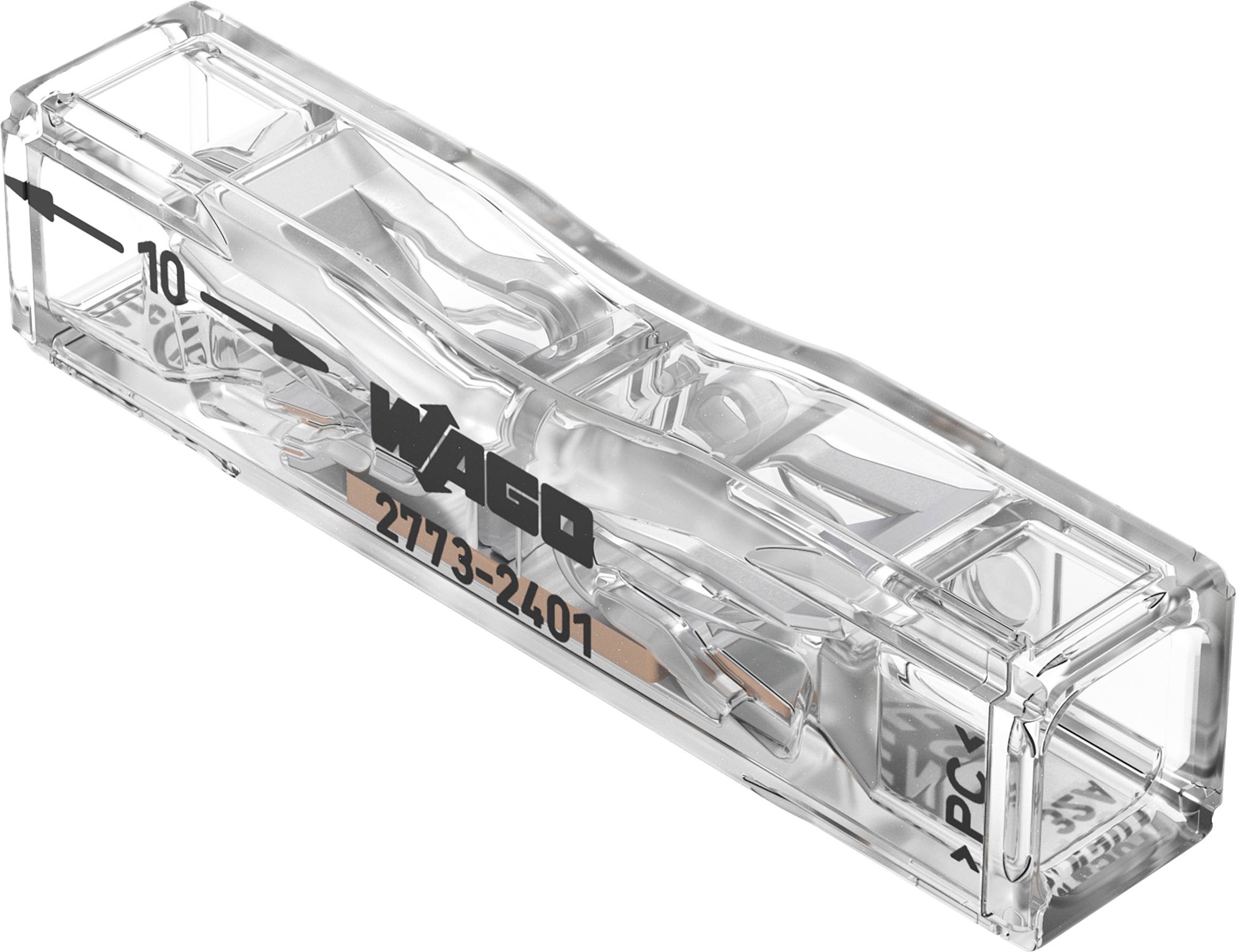

WAGO 2773-2401 2773-2401 Continuity flexible: 1.5-4 mm² fixed: 0.75-4 mm² Number of pins: 1 1 pc(s) Transparent
EAN:
Part number:
Item no:
Product type
Continuity
Cross section (flexible) (min.)
1.5 mm²
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (min.)
0.75 mm²
Cross section (inflexible) (max.)
4 mm²
Quantity (Piece(s))
Savings
Package size (plus VAT.)
7
-
€ 0.61
21
8% = € 0.05
€ 0.56
35
10% = € 0.06
€ 0.55
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 7
Total (€ 0.61 / piece)
€ 4.27
plus VAT.
14-day return policy included
Highlights & Details
Through connector push wire
- Always safe and reliable connectionsMinimum space requirementTool-free push-in technology
Technical specifications
- Product type
Continuity
- Cross section (flexible) (min.)
1.5 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.75 mm²
- Cross section (inflexible) (max.)
4 mm²
- Number of pins
1
- Factory colour
Transparent
- Series
2773
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Content
1 pc(s)
- Dim
(L x W x H) 29 x 7.0000 x 6.0000 mm
- Manufacturer part #
2773-2401
18 - 14
- Connection
Push-in connector
- Contact material
Cathode copper
- Nominal voltage
450 V
- Width
7.0000 mm
- Length
29 mm
- Connector clip features
Actuator
- Depth
30.0000 mm
- Height
6.0000 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2865674 WAGO 2773-2401 2773-2401 Continuity flexible: 1.5-4 mm² fixed: 0.75-4 mm² Number of pins: 1 1 pc(s) Transparent
Description

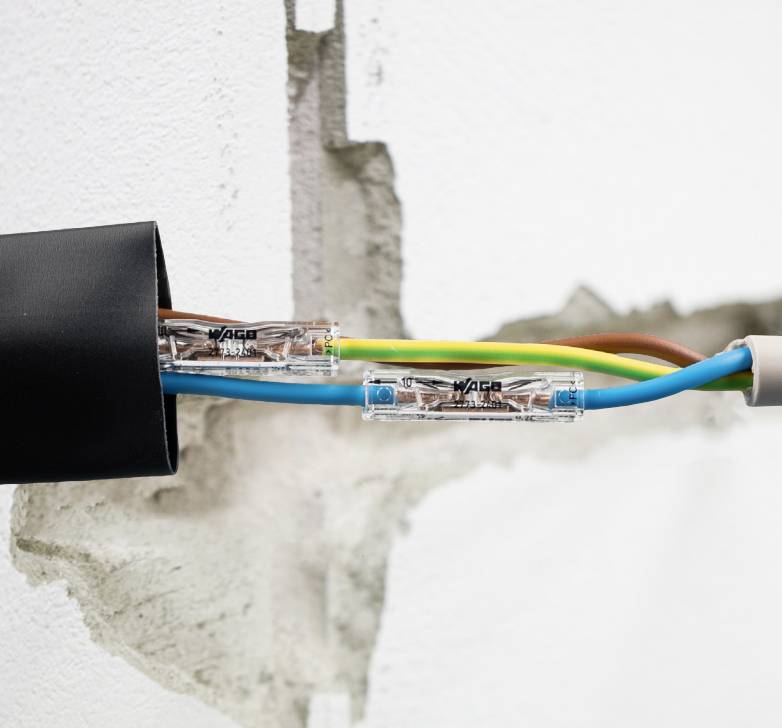

The plug-in through connector is the ideal product for connecting wires in the smallest possible space. There are many possible applications for plug-in through connectors, be it a wire that is too short in the flush mounting box to extend whole lines or repair damaged lines. You can use the plug-in through connector to connect electrical wires easily, quickly and safely to the smallest possible space, and completely without the need for tools. During repair, the connector can be used flush mounting thanks to maintenance-free spring technology with a suitable shrink hose and thus becomes a real problem solver and indispensable assistant. Thanks to its short and compact design, several passage connectors can be arranged one after the other to save space.
This text is machine translated.
This text is machine translated.
Features
- Easy checking of the correct stripping length thanks to the pressure gaugeOptimal grip thanks to integrated recessed handleProvides plenty of space for use thanks to the extremely small dimensions (29 mm)Full rated current for 4mm² conductors with 32 A.Easy testing of correct conductor position with a clear, transparent housingPlug in the wire and ready Tool-free operation thanks to maintenance-free spring connection
