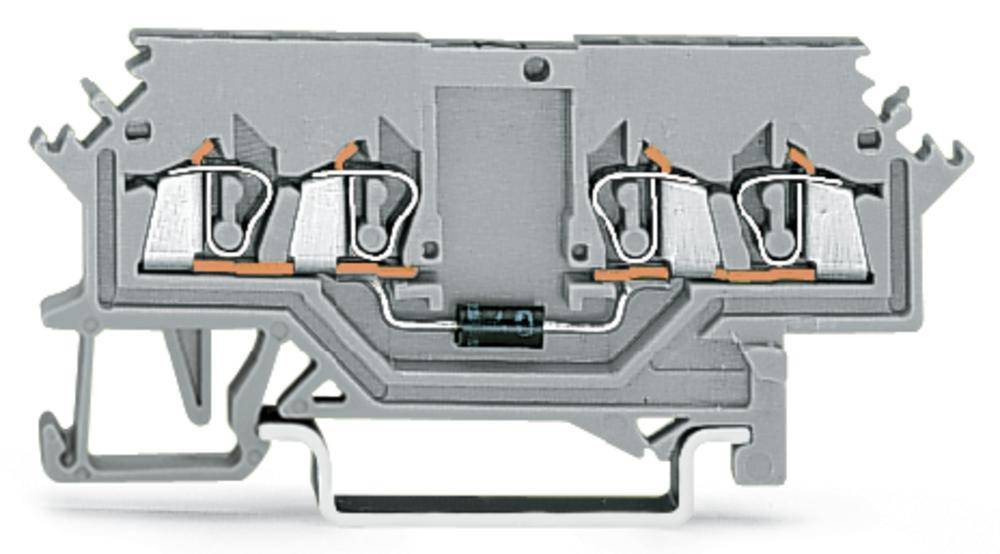

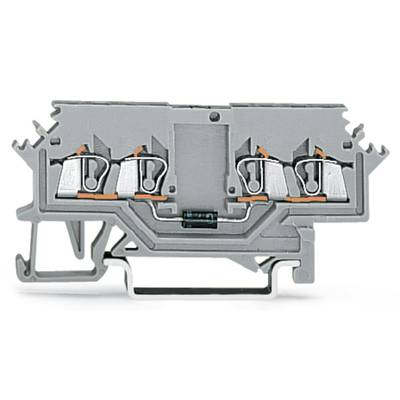

WAGO 279-623/281-411 Diode terminal 4 mm Pull spring Configuration: L Grey 100 pc(s)
EAN:
Part number:
Item no:
Product type
Diode terminal
Connection
Pull spring
Cross section (flexible) (max.)
1.50 mm²
Cross section (inflexible) (max.)
1.50 mm²
Nominal current - rounded value
500 mA
Datasheet (PDF)
Show alternatives
Sales and shipping:
Number (Package size 100 pc(s))
Total (€ 4.50 / piece)
€
Highlights & Details
4-conductor diode terminal block
- 279-623/281-411
- Industrial packaging with 100 pieces
Technical specifications
- 4-LEITER-DIODENKLEMME 1,5 QMM GRAU
- Product type
Diode terminal
- Features
+ 1 diode
- Connection
Pull spring
- Configuration
L
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
1.50 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
1.50 mm²
- AWG (min.)
28
- AWG max.
16
- Clamp width
4 mm
- No. of rows
1
- Pins per row
4
- Number of pins
4
- Factory colour
Grey
- Nominal current
0.5 A
- Nominal current - rounded value
500 mA
- Nominal voltage
250 V
- Min. stripping length
8 mm
- Stripping length (max.)
9 mm
- Manufacturer part #
279-623/281-411
- Content
100 pc(s)
- Industrial packaging
Yes
- Type
279-623/281-411
- Dim
(W x H) 4 mm x 27 mm
- Width
4 mm
- Height
27 mm
DIN rail (top hat rail) 35 mm
Grey
4
68 mm
27 mm
250 V
105-105 °C
V0
TRUE
Spring clamp connection
Spring clamp connection
1
4
FALSE
0.08-1.5 mm²
0.08-1.5 mm²
0.08-1.5 mm²
Thermoplastic
0.5 A
FALSE
Documents & Downloads
Datasheet
Datasheet 535365 WAGO 279-623/281-411 Diode terminal 4 mm Pull spring Configuration: L Grey 100 pc(s)
User & Safety Instructions
User & Safety Instructions 535365 WAGO 279-623/281-411 Diode terminal 4 mm Pull spring Configuration: L Grey 100 pc(s)
Description
Lateral label, with 1N4007 diode for TS 35, Front Wiring, CAGE CLAMP ® connection, horizontal design, gray.
