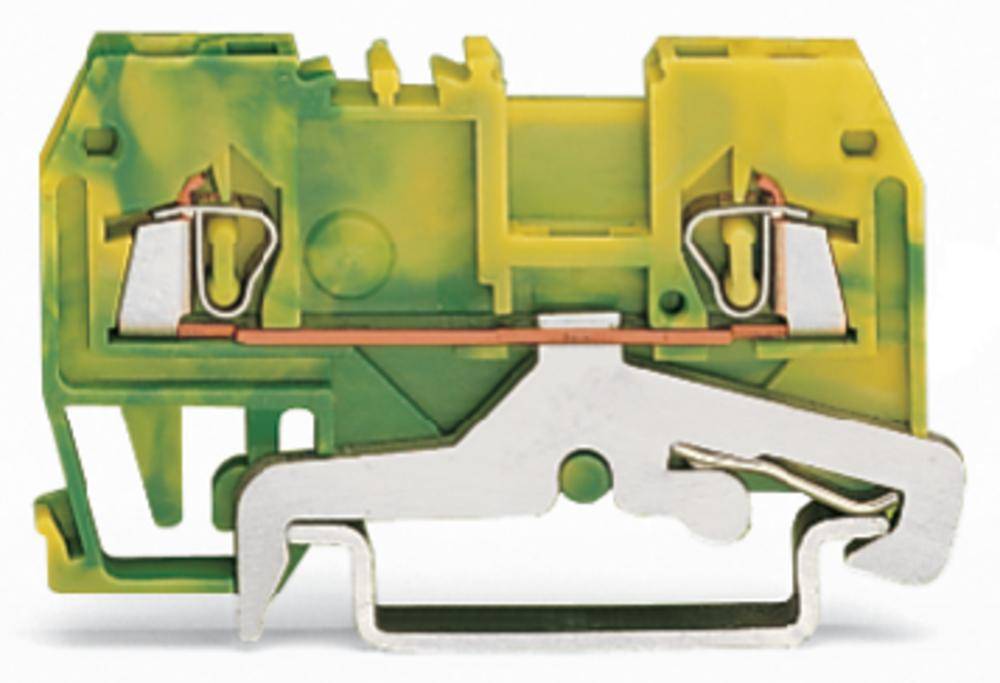

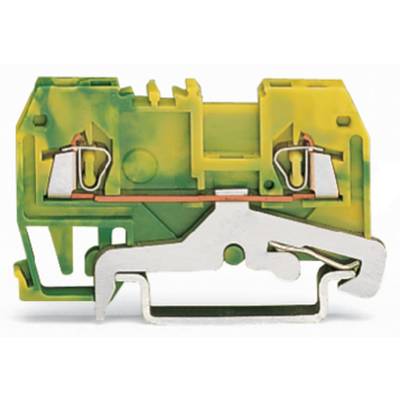

WAGO 279-907/999-950 PG terminal 4 mm Pull spring Configuration: Terre Green, Yellow 100 pc(s)
EAN:
Part number:
Item no:
Product type
PG terminal
Connection
Pull spring
Cross section (flexible) (max.)
1.50 mm²
Cross section (inflexible) (max.)
1.50 mm²
Nominal current - rounded value
18 A
Datasheet (PDF)
Number (Package size 100 pc(s))
Total (€ 3.66 / piece)
€ 365.55
plus VAT.
14-day return policy included
Highlights & Details
2-conductor ground terminal block
- 279-907/999-950
Technical specifications
- 2-C GROUND (EARTH) COND.T.BL GR/YEL.
- Product type
PG terminal
- Features
Complies with ATEX Ex-e II standards
- Connection
Pull spring
- Configuration
Terre
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
1.50 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
1.50 mm²
- AWG (min.)
28
- AWG max.
16
- Clamp width
4 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Green
Yellow
- Nominal current
18 A
- Nominal current - rounded value
18 A
- Min. stripping length
8 mm
- Stripping length (max.)
9 mm
- Manufacturer part #
279-907/999-950
- Content
100 pc(s)
- Industrial packaging
Yes
- Type
279-907/999-950
- Dim
(W x H) 4 mm x 27 mm
- Width
4 mm
- Height
27 mm
DIN rail (top hat rail) 35 mm
Green/yellow
4
54 mm
27 mm
105-105 °C
V0
TRUE
Spring clamp connection
Spring clamp connection
1
2
0.08-1.5 mm²
0.08-1.5 mm²
0.08-1.5 mm²
Thermoplastic
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 535439 WAGO 279-907/999-950 PG terminal 4 mm Pull spring Configuration: Terre Green, Yellow 100 pc(s)
User & Safety Instructions
User & Safety Instructions 535439 WAGO 279-907/999-950 PG terminal 4 mm Pull spring Configuration: Terre Green, Yellow 100 pc(s)
Description
Complies with ATEX Ex-e II, green-yellow.
